其他功能
| 无线技术 |
Y |
| 支持网络协议 |
TCP/IP, PPP, DNS, DHCP, SNMP |
| 网路功能 |
Fast Ethernet |
端口 & 界面
| PS/2连接埠数量 |
1 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| DVI-I接口数量 |
1 |
环境条件
| 运行温度范围（T - T） |
32 - 104 °F |
另外
| 主板晶片 |
Intel 945GSE Express |
| 图形适配器 |
GMA 950 |
| 以太网路(RJ-45)连接接口数量 |
1 |
CPN05006 - EX PC XPD4741W, Built-in Wireless, EU Power Supply, Windows Embedded Standard 2009 OS, Intel Atom N270 processor, 1.60 GHz, 2 GB DOM, 1 GB DDR2 RAM, 4 x USB 2.0 ports, 1 x PS/2, DVI-I Video-Out, HD Audio Support, ICA 11, RDP 6.1, Outlook Express, Internet Explorer 7, VMware VMView 4, Windows Media Player 11, Flash Player 10, Ultra VNC, .NET Framework

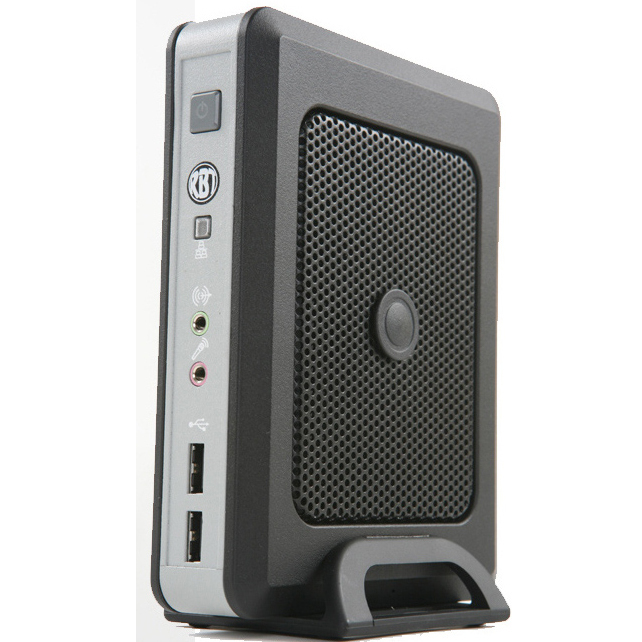

The EX-PC XPD4741 is a top, high-performance Windows Embedded 2009 device with a small foot print and low power consumption, integrating Intel® Atom processor and the robust Xcalibur Global management software.
It is the perfect desktop for users that require high-end functionality, including multiple displays and demanding applications. The XPD4741 is specifically designed for server-based and desktop virtualization environments, supporting PXE boot, multi DVI LCD displays and optional internal wireless solution.
The Chip PC Xcalibur Global XP Client enables complete policy-based, remote management of the XPD4741 from a central location, including inventory status, session management and integration with Active Directory. It offers device configuration management based on users & groups policies.
Additional tools to manage the XPD4741 are Altiris® Deployment Solution and Microsoft® WDS (Windows Deployment Server), enabling remote deployment and updates of clients from a central location.
Highlights:
- Powerful - powered by Intel Atom based processor.
- DVI Video - including dual display support.
- Flexible - runs a wide set of 32bit Clients and applications.
- Customizable - desktop interface and modular operating system.
- Plug-and–Play - Fast, easy installation and deployment.
- Data Integrity – Centralized data storage and backup,
- Secured - Enhanced Write Filter protection & File based Filter protection.
- Compact - Weights as little as 0.6 Kg; easy to handle, ship, store, and install.
