安全
| 防火墙 |
IOS |
| MAC（媒体存储控制）地址过滤 |
Y |
其他功能
| 扩展类型 |
HWIC-4SHDSL |
| 接口数量 |
2 |
| 接受频率 |
50/60 Hz |
| 遵守工业标准 |
SHDSL |
| 输入电压 |
100 - 240 V |
以太网LAN特性
| 全双工传输 |
Y |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
性能
| 内置存储器 |
256 MB |
| 闪存 |
64 MB |
| 芯片组 |
Infineon |
认证标准
| 安全 |
UL 60950, IEC 60950-1, EN 60950-1 |
环境条件
| 运行温度范围（T - T） |
-40 - 158 °F |
另外
| 以太网连接器 |
Y |
| 连接方式 |
Wired |
| 包括 AC 适配器 |
N |
| 以太网路(RJ-45)连接接口数量 |
2 |

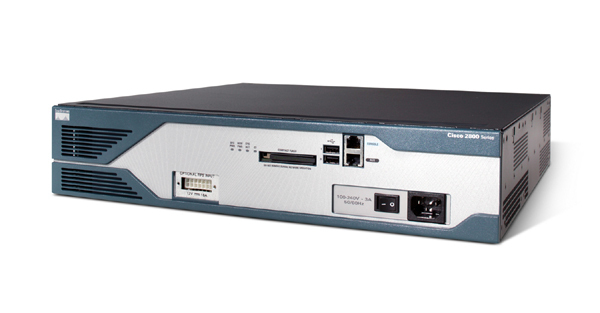

C2821-4SHDSL/K9
The 2-pair (HWIC-2SHDSL) and 4-pair (HWIC-4SHDSL) symmetric high-bit-rate DSL high-speed WAN interface cards (HWICs) provide G.SHDSL connectivity to a Wide Area Network (Figures 1 and 2). The 4-pair symmetric G.SHDSL HWIC provides two ports of 4-wire or four ports of 2-wire connectivity options, whereas the 2-pair G.SHDSL HWIC provides two ports of 2-wire or one port of 4-wire connectivity options. The 4-pair symmetric G.SHDSL HWIC also allows bonding single or dual-pair G.SHDSL ports up to a single 8-wire interface with increased bandwidth by using Inverse Multiplexing over ATM (IMA) or data interleaving with M-pair mode. These cards are supported in all integrated services routers that have HWIC slots.
The 2-pair and 4-pair G.SHDSL HWICs supersede the existing G.SHDSL WAN Interface Card (part number WIC-1SHDSL-V3), which is a WIC-based G.SHDSL solution. The two new G.SHDSL HWICs provide higher performance and increased reach when compared to the G.SHDSL WIC. Table 1 compares the three interface cards.
G.SHDSL technology offers customers high-speed, symmetrical WAN connectivity at a lower monthly cost than traditional WAN circuits. The 2- and 4-pair G.SHDSL HWICs together with Cisco integrated services routers provide businesses the necessary bandwidth for critical traffic such as voice and video conferencing, and enable customers to save money by integrating voice and data traffic on the same WAN link. Service providers can increase subscriber revenue by bundling services and offering differentiated service levels through service-level agreements.
The first standardized multirate symmetric DSL, G.SHDSL has been an accepted worldwide technology standard based on ITU recommendation G.991.2. G.SHDSL is designed to transport rate-adaptive symmetrical data across a single copper pair at data rates up to 2.304 Mbps for a single pair or up to 4.608 Mbps over two pairs. Later enhancements (Annexes F and G) to the G.991.2 specification allow for increased performance up to 5.696 Mbps over a single copper pair. IMA technology allows the 4-pair G.SHDSL HWIC to offer data rates up to 2.304 Mbps per pair and up to 9.2 Mbps over four pairs. These rates cover applications traditionally served by HDSL, SDSL, T1, E1, and services beyond E1. Refer to Table 2 for the data rates supported by the 2- and 4-pair G.SHDSL HWICs (HWIC-2SHDSL and HWIC-4SHDSL) under different configurations.
