认证标准
| 安全 |
UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, ACA TS001, AS/NZS 60950, FDA – Code of Federal Regulations Laser Safety |
| 电磁兼容性 |
FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A, VCCI Class A, BSMI Class A, IEC/EN 61000-3-2: Power Line Harmonics, IEC/EN 61000-3-3: Voltage Fluctuations and Flicker, EN 50121-4: Railway EMC |
联网
| 以太网的数据传输率 |
100, 1000 Mbit/s |
环境条件
| 工作高度 |
-60 - 4000 m |
| 运行温度范围（T - T） |
32 - 104 °F |
协议
| 支持的协议 |
L2VPN, IPv4, IPv6, L3VPN |

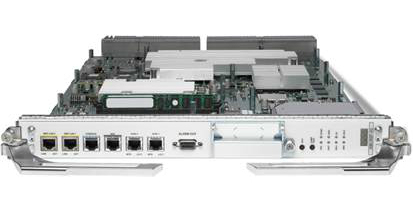

ASR9K Route Switch Processor 440G/slot, 12GB RAM, 2x 1GE, 2x 10G SFP+, for Service Edge, Spare
The Cisco® ASR 9000 Series Route Switch Processor 440 (RSP 440) is a main system processor for Cisco ASR 9000 Series. It supports scalable, low-power, next-generation platforms, as well as required by today’s service provider networks.
Cisco ASR 9000 Series Routers offer one of the industry’s highest-capacity edge platforms, optimized for aggregation of dense 10 Gigabit Ethernet and 100 Gigabit Ethernet connections.
<b>In addition to a higher capacity and scale, the Cisco ASR 9000 Series offers:</b>
- Distributed forwarding and control planes for higher performance
- Network virtualization technology to provide excellent resilience and capacity expansion
- Modularized system components in both hardware and software, isolating failure and faults to subsystems and components
- Hardware-based signaling for the fabric, providing industry-leading resilience with zero packet loss on switchover
- Built-in redundancy in hardware components such as the route switch processor (RSP), switch fabric, control-plane chassis control bus, and power supplies, thereby avoiding a single point of failure
- Advanced network timing technologies support for precise frequency and time distribution throughout the network
- Extensive selection of time-division multiplexing (TDM) and Ethernet interfaces for flexible deployment in multiservice edge (MSE) and RAN aggregation environments with packet- and circuit-based transport
The Cisco ASR 9000 Series operates in a fully distributed fashion, meaning that all packet-forwarding decisions and actions take place on each individual line card. Cisco ASR 9000 Series line cards provide a flexible programming infrastructure with high-density hierarchical quality-of-service (H-QoS) services, security, and integrated Synchronous Ethernet (SyncE). The distributed nature of the Cisco ASR 9000 Series also presents itself in the control plane. The distributed control plane facilitates scale in features such as Bidirectional Forwarding Detection (BFD) and Ethernet operations, administration, and management (EOAM), which improve resilience and provide comprehensive instrumentation.
Cisco ASR 9000 Series routers bring the time-tested and robust carrier-class capabilities of Cisco IOS® XR Software to the Carrier Ethernet edge. The operating system supports true software process modularity. The capabilities of Cisco IOS XR Software allow each process to run in separate protected memory, including each routing protocol along with multiple instances of control, data, and management planes supported. The software also supports distributed route processing.
