联网
| 支持ISDN连接 |
Y |
| 路由协议 |
BGP, EIGRP, HSRP, OSPF, RIP-1, RIP-2 |
| 管理协议 |
SNMPv3, SSH, CLI, HTTP, TACACS+ |
安全
| 防火墙 |
IOS, VRF |
| 支持虚拟专用网 |
SSL VPN, DMVPN |
| 网络地址转换功能 |
NAT-PT |
| 虚拟专用网信道数量 |
20 |
| 网页(URL)过滤 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
| IP地址过滤 |
Y |
以太网LAN特性
| 布线技术 |
10/100Base-T(X) |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 以太网LAN接口类型 |
Fast Ethernet |
| 全双工传输 |
Y |
| 以太网的数据传输率 |
10, 100 Mbit/s |
无线局域网的特点
| Wi-Fi 频段 |
Single-band (2.4 GHz) |
| Wi-Fi标准 |
IEEE 802.11n |
| WLAN的数据传输率（最大值） |
54 Mbit/s |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
ADSL的特点
| ADSL说明书 |
Annex A, B |
| ADSL2 |
Y |
| ADSL2 + |
Y |
| HDSL |
Y |
| 宽带 |
Y |
WAN 广域网连接
| 广域以太网 |
Y |
| 3G/4G USB 调制解调器的兼容性 |
N |
| DSL WAN |
Y |
| SIM卡插槽 |
N |
天线
| 天线类型 |
External |
| 天线增益水平（最大值） |
2 dBi |
| 可拆式天线（S） |
Y |
管理功能
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
| 网上管理 |
Y |
协议
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
端口 & 界面
| USB端口 |
N |
| RJ - 11端口数量 |
1 |
| DC-IN插口 |
Y |
其他功能
| 输入电压 |
100 - 240 V |
| 运行温度范围（T - T） |
32 - 104 °F |
环境条件
| 非运行高度 |
0 - 4570 m |
| 工作高度 |
0 - 3000 m |
另外
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
N |
| 以太网路(RJ-45)连接接口数量 |
4 |
G.SHDSL FXS, ISDN Backup, 802.11n, ETSI, 4-port 10/100-Mbps, 4 FXS/2 BRI, QoS, 256 MB DRAM

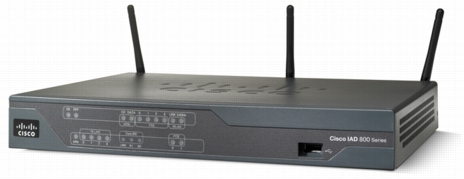

The Cisco IAD 880 Series Integrated Access Devices are cost-effective fixed configuration customer premises equipment for service providers offering managed voice and data services. The Cisco IAD 880 Series offers cost-effective platforms for providing interconnect solutions for accelerating the migration from time-division multiplexing (TDM) to voice over IP (VoIP). The Cisco IAD 880 Series provides secure concurrent services, including firewall, content filtering, VPNs, and WLANs, at broadband speeds to small offices. The Cisco IAD 880 Series includes fixed-configuration platforms with voice ports, WAN uplinks, embedded encryption acceleration, voice digital-signal-processor (DSP) slots on the motherboard, and intrusion-prevention-system (IPS) and IP Security (IPsec) features while maintaining a desktop form factor for space-saving service provider managed services deployments.
Powered by Cisco IOS Software, the Cisco IAD 880 Series supports TDM and VoIP, with proven quality-of-service (QoS) tools, multiple call-control protocols (such as Session Initiation Protocol [SIP], Media Gateway Control Protocol [MGCP], and H.323), and diverse VoIP codecs. The choice of Foreign Exchange Station (FXS) or Basic Rate Interface (BRI) voice ports over asymmetric DSL (ADSL) or G.SHDSL furthers the appeal of the Cisco IAD 880 Series to service providers for providing managed services.
