技术细节
SPA在线插入和删除(OIR) |
Y |
支持管理信息基本原则 |
SONET-MIB (RFC 3592), SONET/SDH-MIB (RFC 2558), CISCO-SONET-MIB, DS-3/E3-MIB (RFC 3896) |
支持共享端口适配器(SPA) |
Serial/Channelized |
支持服务质量(QoS) |
Y |
认证标准
安全 |
UL 60950, CSA 22.2-No.60950, EN60950, IEC 60950 CB Scheme, ACA TS001, AS/NZS 3260, EN60825\IEC60825, 21CFR1040 |
电磁兼容性 |
FCC Part 15 (CFR 47), ICES 003, CISPR 22, AS/NZS CISPR22, VCCI, EN55022, EN55024, EN300 386, EN50082-1, EN61000-6-1 |
管理功能
管理协议 |
SONET-MIB (RFC 3592), SONET/SDH-MIB (RFC 2558), CISCO-SONET-MIB, DS-3/E3-MIB (RFC 3896), Simple Network Management Protocol (SNMP) |

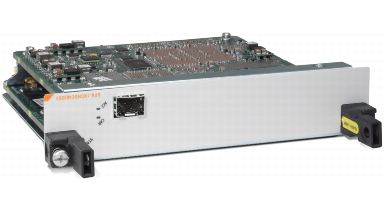

Cisco 1-port Channelized OC48/STM-16 SPA
The Cisco® I-Flex design combines shared port adapters (SPAs) and SPA interface processors (SIPs) using an extensible design that enables service prioritization for voice, video, and data services. Enterprise and service provider customers can use the improved slot economics resulting from modular port adapters that are interchangeable across Cisco routing platforms. The I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors that deliver line-rate performance. I-Flex enhances speed-to-service revenue and provides a rich set of quality-of-service (QoS) features for premium service delivery while effectively reducing the overall cost of ownership. This data sheet contains the specifications for the Cisco 1-Port Channelized OC48/STM-16 SPA.
The Cisco 1-Port Channelized OC-48/STM-16 SPA is available on high-end Cisco routing platforms offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco SPA/SIP portfolio continues the Cisco focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows different interfaces (Packet over SONET/SDH [POS], ATM, Ethernet, etc.) to be deployed on the same interface processor.
<b>Applications</b>
Internet traffic continues to grow at an explosive rate - with the number of users doubling each year. This unsurpassed growth is increasing the demand for higher-capacity interfaces from OC-3/STM-1 to OC-48/STM-16. In addition, POS enables efficient transport of IP traffic and uses SONET/SDH concatenated payloads (that is, STS-3c/VC-4, STS-12c/VC-4-4c, or STS-48c/VC-4-16c) to achieve a higher order of statistical multiplexing.
Service providers face the challenge of meeting customer demand by building scalable, feature-rich edge networks that can deliver value-added services such as Multiprotocol Label Switching VPNs (MPLS VPNs); voice, video, and data integration; and tiered service offerings at all interface rates without compromising density or line-rate performance. The Cisco Channelized OC-48/STM-16 SPA channels one OC-48 or STM-16 interface into DS-3, E3, OC-3c, STM-1c, OC-12c, or STM-4c channels and provides an extensive set of service-enabling edge features while performing at line rate simultaneously on all ports.
<b>Features at a Glance</b>
- 1-port Channelized OC-48/STM-16 per SPA
- SONET PDH-DS3 (M23 and C-bit) mapping: STS-1<>DS3
- Channelization support for 4 OC-12, 16 OC-3, 48 DS-3 channels, or any combination of these
- Subrate DS-3
- Bit Error Rate Test (BERT) support for T3/E3 channels
- MDL for T3/E3 channels
