技术细节
| SIP在线插入和删除（OIR） |
Y |
| 支持管理信息基本原则 |
Entity-MIB (RFC 2737), Cisco-entity-asset-MIB, Cisco-entity-field-replaceable unit (FRU)-control-MIB, Cisco-entity-alarm-MIB, Cisco-entity-sensor-MIB, IF-MIB, Etherlike-MIB (RFC 2665), Remote Monitoring (RMON)-MIB (RFC 1757), Cisco-class-based-QoS-MIB, MPLS-related MIBs |
| 支持共享端口适配器（SPA） |
Ethernet |
| 支持服务质量（QoS） |
Y |
| 每个模块的SPA插架数量 |
8 |
认证标准
| 安全 |
UL 60950-1, CSA C22 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950, EN 60825-1, EN 60825-2, 21 CRF 1040 |
| 电磁兼容性 |
FCC Part 15 - Class A, ICES 003 - Class A, CISPR 22 Class A, EN 55022 Class A, EN 300386 Class A, AS/NRZ Class A, VCCI - Class A, EN 50082-1/EN 6100-6-1, EN 55024, BSMI Class A, IEC/EN61000-3-2, IEC/EN61000-3-3, IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-5, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-11 |
8-Port 100BASE-TX Fast Ethernet Shared Port Adapter

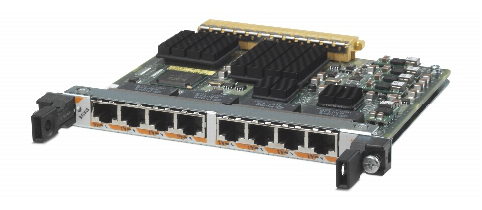

The Cisco ® Interface Flexibility (I-Flex) design combines shared port adapters (SPAs) and SPA interface processors (SIPs), taking advantage of an extensible design that helps enable service prioritization for voice, video, and data services. Enterprise and service provider customers can take advantage of improved slot economics resulting from modular port adapters that are interchangeable across Cisco Systems ® routing platforms. The Cisco I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors that deliver line-rate performance. Cisco I-Flex enhances speed-to-service revenue and provides a rich set of quality-of-service (QoS) features for premium service delivery while effectively reducing the overall cost of ownership. This data sheet contains the specifications for the Cisco 8-port Fast Ethernet SPA (refer to Figure 1).
The Cisco 8-port FE SPA is available on high-end Cisco routing platforms offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco SPA/SIP portfolio continues the company's focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows deployment of different interfaces (packet over SONET/SDH [POS], ATM, Ethernet, etc.) on the same interface processor.
Fast Ethernet interfaces are commonly used for interconnecting routers or other devices within a central office or data center or in a metropolitan-area network (MAN). With Fast Ethernet SPAs, users can mix-and-match SPA ports with other types of interfaces in the same slot. Each SPA provides standards-based Fast Ethernet implementation for compatibility and interoperability.
<b>Applications</b>
The Cisco Fast Ethernet SPAs can be used in multiple applications, including:
- Inter- and intrapoint of presence (POP) aggregation
- Metro Ethernet
- Internet peering
