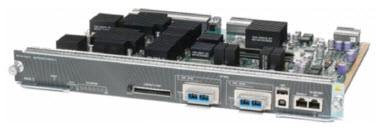

Cisco WS-X45-SUP6-E/2 network switch module

Cisco WS-X45-SUP6-E/2 network switch module

MPN: WS-X45-SUP6-E/2
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

数据传输

MAC 地址表 55000 entries
交换容量 320 Gbit/s
带宽 160 Gbit/s
转发速率 250 Mpps
VLAN 数量 4096

管理功能

管理平台 SNMP v1/v2/v3, RMON I and II, RFC 1213-MIB (MIB II), UDP-MIB, TCP-MIB, CISCO-FLASH-MIB, CISCO-IMAGE-MIB, RFC 2233 (IF-MIB), CISCO-CONFIG-MAN-MIB, CISCO-MEMORY-POOL, CISCO-CDP-MIB, RMON-MIB lite (RFC 1757), RMON2-MIB lite (RFC 2021), HC-RMON-MIB, SMON-MIB, ENTITY-MIB (V1-RFC 2037) (V2-RFC 2737), CISCO-PROCESS-MIB, CISCO-CONFIG-COPY-MIB, CISCO-ENTITY-EXT-MIB, CISCO-ENTITY-ASSET-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO ENVMON-MIB, BRIDGE-MIB (RFC 1493), CISCO-PAGP-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, IGMP-MIB, PIM-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-SYSLOG-MIB, CISCO-BULK-FILE-MIB, CISCO CLASS-BASED-QOS-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IPMROUTE-MIB, CISCO-PORT-SECURITY-MIB, CISCO-RMON-CONFIG-MIB, CISCO-VTP-MIB, ETHERLIKE-MIB, EXPRESSION-MIB, CISCO-PORT-STORM-CONTROL-MIB
支持服务质量(QoS) Y

联网

链路汇集 Y
以太网的数据传输率 10, 100, 1000, 10000 Mbit/s

性能

每端口队列 8

端口 & 界面

SFP模块插槽数量 4

认证标准

安全 UL 60950CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, TS 001, AS/NZS 3260
电磁兼容性 FCC P15 (CFR 47) A, ICES-003 A, EN55022 A, CISPR22 A, AS/NZS 3548 A, VCCI A, ETS 300 386, EN 55022, EN 55024, EN 61000-6-1, EN 50082-1, EN 61000-3-2, EN 61000-3-3

安全

存取控制清单(ACL) Y

协议

支持的协议 EIGRP, OSPF, RIP, RIPv2, BGPv4, DVMRP, MSDP, ICMP, SLA

环境条件

运行温度范围(T - T) 32 - 104 °F
工作高度 -60 - 2000 m

另外

巨型帧 Y
以太网路(RJ-45)连接接口数量 2
Catalyst 4500 Redundant Supervisor Engine 6-E, 2x10GE (X2)/4x1GE (SFP), Console RJ-45, USB The Cisco Catalyst 4500 Supervisor Engine 6-E with CenterFlex technology is an intelligent, high-performance, next-generation extension to the Cisco Catalyst 4500 Series optimized for customers deploying business-critical applications. CenterFlex technology is enabled by Cisco developed application-specific integrated circuits (ASICs) specific to the Supervisor Engine 6-E that deliver industry-leading centralized performance and configuration flexibility. CenterFlex technology helps enable granular optimization of real-time voice, video, and data communications to ensure workforce productivity and profitability and customer success for organizations of all sizes.
