数据传输
| 交换容量 |
40 Gbit/s |
| 转发速率 |
15 Mpps |
管理功能
| 管理平台 |
EHERLIKE-MIB (RFC 1643), IF-MIB (RFC 1573), Bridge MIB (RFC 1493), CISCO-STACK-MIB, CISCO-VTP-MIB, CISCO-CDP-MIB, RMON MIB (RFC 1757), CISCO-PAGP-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-VLAN-BRIDGE-MIB, CISCO-VLAN-MEMBERSHIP-MIB, ENTITY-MIB (RFC 2037), HC-RMON, RFC1213-MIB (MIB-II), SMON-MIB |
| 支持服务质量（QoS） |
Y |
认证标准
| 安全 |
UL 1950, CSA-C22.2 No. 950, EN 60950, IEC 950, AS/NZS 3260, IEC 825, EN 60825, 21CFR1040 |
| 电磁兼容性 |
FCC Part 15 (CFR 47) Class A, VCCI, EN55022, EN55024, CISPR 22, CE marking, AS/NZS 3548 |
联网
| 以太网铜缆技术 |
1000BASE-T, 100BASE-TX, 10BASE-T |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
环境条件
| 运行温度范围（T - T） |
32 - 104 °F |
| 工作高度 |
-60 - 3000 m |
另外
| 巨型帧 |
Y |
| 以太网路(RJ-45)连接接口数量 |
48 |

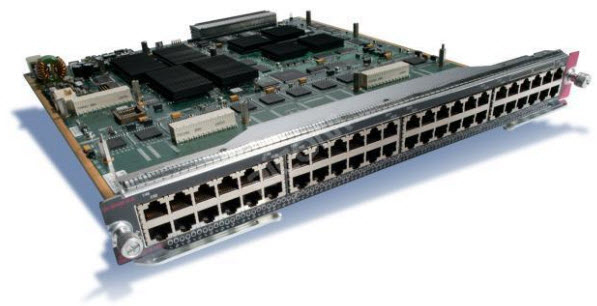

Catalyst 6500 Series 48-Port 10/100/1000 RJ-45 Classic Interface Module, 48 x 10/100/1000Base-T
Designed for deployment in wiring closets, high-density Cisco Catalyst 6500 Series Classic 10/100 and 10/100/1000 interface modules provide line-rate 10/100 Ethernet forwarding and gigabit bandwidth to the desktop capabilities. These interface modules feature PoE field-installable daughter cards for pay-as-you-grow investment protection and flexibility.
The 96 port 10/100 module (part number WS-X6196-21AF) is the industry's first 96-port 10/100 RJ-21 module with IEEE 802.3af support for all 96 ports, helping enable the Cisco Catalyst 6500 Series to deliver the industry's highest port densities ranging from 192 10/100 ports in a Cisco Catalyst 6503 chassis to 1152 10/100 ports in a Cisco Catalyst 6513 chassis for a very cost-effective solution in the wiring closet.
The WS-X6196-RJ-21 module doubles the port density in the system in the same footprint, using the stacked standard RJ-21 connectors. Port-density improvement can be achieved with no incremental investment in the cable infrastructure. With the 802.3af PoE daughter card, this module can support up to 96 Class 2 devices or 62 Class 3 devices per module (960W of PoE per module).
The 96-port 10/100 module (part number WS-X6148X2-RJ-45) is the industry's first 96-port 10/100 RJ-45 module that helps enable the Cisco Catalyst 6500 Series to deliver industry's highest port densities, ranging from 192 10/100 ports in a Cisco Catalyst 6503 chassis to 1152 10/100 ports in a Cisco Catalyst 6513 chassis for a very cost-effective solution in the wiring closet.
The 96-port 10/100 module (part number WS-X6148X2-RJ-45) doubles the port density in the system by allowing it to expand from 48 ports to 96 ports per slot with the addition of a splitter (included), typically mounted at the patch panel. The splitting also can occur at the wall jack, providing another option for doubling the port density of the switch without costly rewiring. This module also can function as a regular 48-port 10/100 module for maximum flexibility and scalability in the future. With the 802.3af PoE daughter card, this module can support up to 48 Class 3 devices per module when operating as a 48-port module, or up to 96 Class 2 devices per module when operating as a 96-port module (960W of PoE per module).
