数据传输
| 存储转发 |
Y |
| 支持数据传输率 |
10 Mbps |
| 最大数据传输率 |
0.1 Gbit/s |
其他功能
| 连通的液晶显示器 |
Y |
| 网路功能 |
Fast Ethernet |
| 电源类型 |
DC |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 全双工传输 |
Y |
| 流量控制支持 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
8 |
| DC-IN插口 |
Y |
环境条件
| 运行温度范围(T - T) |
32 - 113 °F |

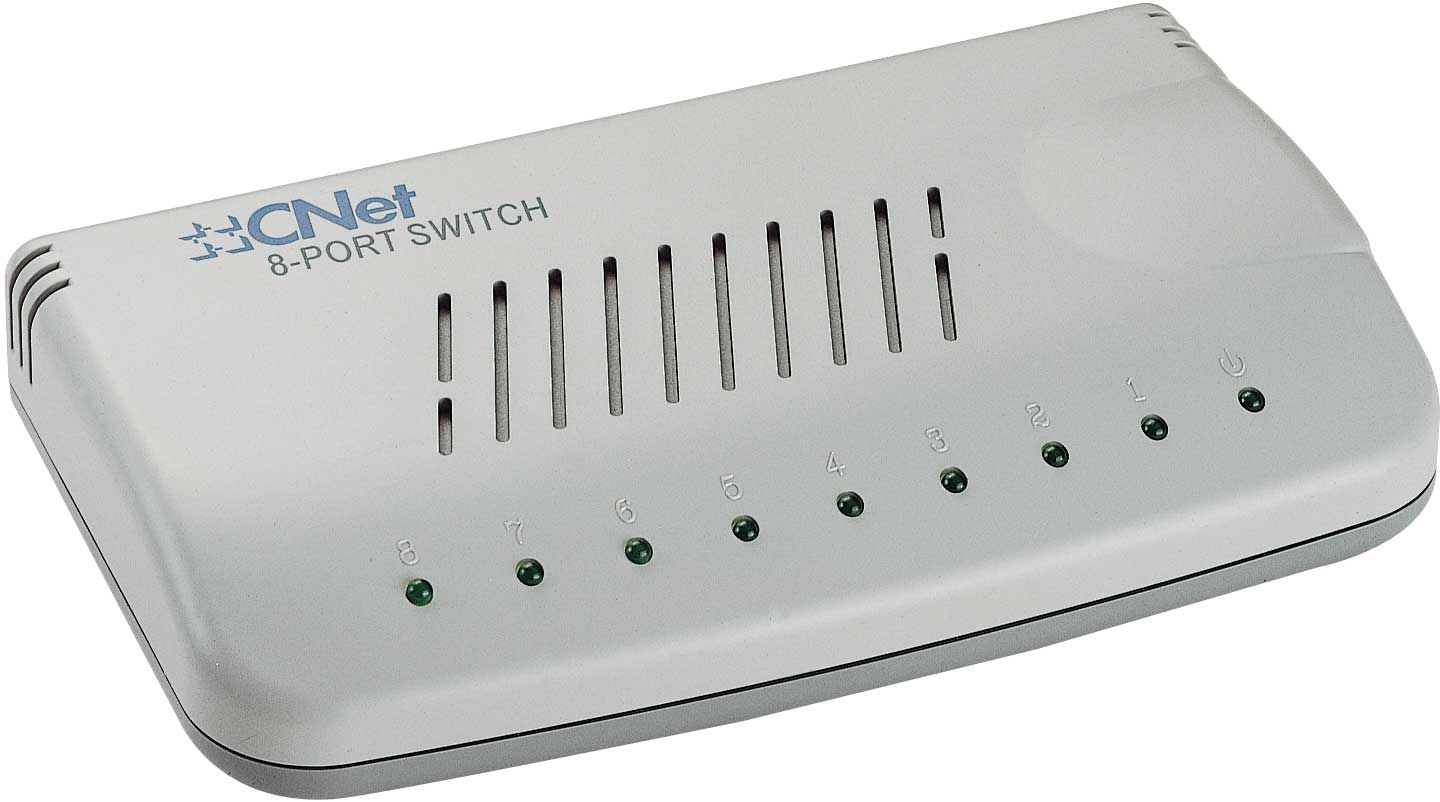

CNSH-800, 8-port, Fast Ethernet, Auto-MDI/MDI-X, Flow-Control
CNets CSH-800 is a powerful Eight (8) ports Fast Ethernet Switch. It comes with Eight (8) 100/10Mbps ports. Every port is equipped with a Built-In Auto-Negotiation function. Simply attach a network device to any port and the port will automatically set the port to operate at the fastest possible speed. This Switch is designed to provide lots of bandwidth with minimum hassle. They are 100% Plug-&-Play and require no configuration. These models fully comply with IEEE 802.3u and IEEE 802.3 standards for Fast Ethernet and Ethernet operation
Features
- Supports Power Savings by Link-down Status and Cable Length;
- Eight (8) ports with Auto-Negotiation function;
- Full wire speed Store-and-Forward technology instantly eliminates bad packets;
- All ports support Auto-MDI/MDIX which can detect and correct crossover cables;
- IEEE 802.3u and 802.3 standards compliant;
- IEEE 802.3x Flow-Control support for Full-Duplex operation;
- Back-Pressure support for Half-Duplex operation;
- Plug-&-Play with easy to read diagnostic LEDs.
