性能
| 主板元件 |
Mini ITX |
| 音频系统 |
ACL655 AC97 3D |
背板输出端口
| 并口数量 |
1 |
| 串口数量 |
2 |
| PS/2连接埠数量 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| VGA（D-SUB）端口数量 |
1 |
其他功能
| 操作特性 |
ACPI 2.0 |
| 图形控制器 |
Intel |
| 专用功能部件 |
Intel ICH4 + RTC\n40-pin UltraATA/100 IDE\n1x 44-pin IDE\n18/24-bit LVDS\n8-bit GPIO |
内置输入/输出系统
| ATX电源接头 |
Y |
| 软盘驱动器接口 |
Y |
| CD/AUX音频输入 |
Y |
扩展槽
| PCI 插槽 |
1 |
| 扩展插槽 |
2x Mini-PCI |

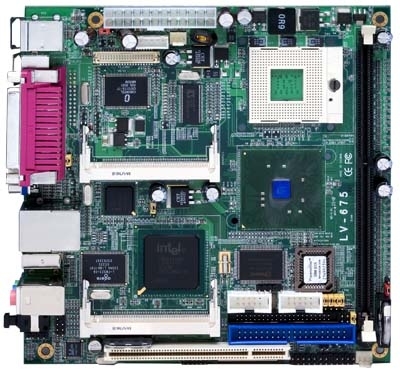

Mini-ITX Mobile Intel Pentium M Embedded Motherboard
Taiwan Commate Computer Inc. (COMMELL) a leading provider of Mini-ITX platform solution, announced the new embedded LV-675 Mini-ITX mainboard .LV-675 is the first Mini-ITX Motherboard support Intel® Pentium M / Celeron M processor with 2 x Mini-PCI expansion and high performance display functions for DVI or LVDS application.
With Intel® high performance chipset, LV-675 built-in Intel® Extreme Graphic technology with the sizable memory bandwidth of DDR333 up to 1GB and up to 64MB shared with system memory. High data transfer speeds of ATA/100 and also support DiskOnModule with +5V power supply. Its connectivity options include support for up to four USB 2.0 connections, two COM ports and One Intel® Gigabit Ethernet port. 5.1 channel audio output provided by Realtek ALC655 AC97 Codec.The latest in high-bandwidth connectivity is supported with IEEE 1394, as well as S-Video and RCA TV-Out (NTSC & PAL).For multimedia application, LV-675 offers the advanced features with the optional onboard interface,
including LVDS or DVI to meet the wide range of application. Its additional expansion capabilities include two Mini-PCI and one PCI slot.
COMMELL LV-675 is the perfect platform for low cost, low-power and high performance for the embedded application such as gaming machine, Kiosk and media centers, even NAS, POS and ATM application is suitable.LV-675 is also compatible with Microsoft Windows and Linux operating systems.
