技术细节
| 类型 |
AV transmitter & receiver |
| 带宽 |
10.2 Gbit/s |
| 最大传输距离 |
70 m |
| 可支持的电缆类型 |
Cat5, Cat6 |
端口 & 界面
| 串口数量 |
2 |
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| HDMI输入 |
1 |
| DC-IN插口 |
Y |
重量和尺寸
| 接收器尺寸（宽 x 深 x 高） |
77 x 134 x 30 mm |
| 发射器的宽度 |
77 mm |
| 发射器的高度 |
30 mm |
| 发射机深度 |
134 mm |

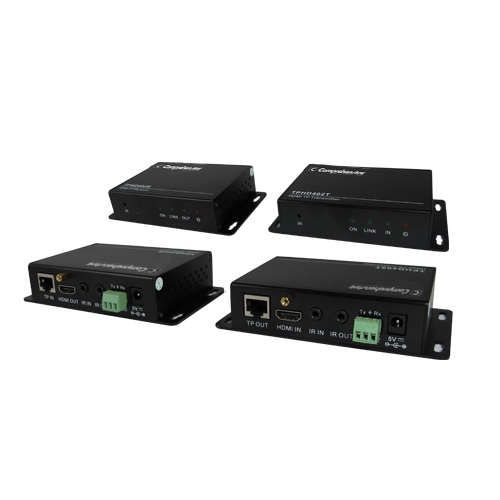

HDMI RS-232 Extender HDBaseT over twisted pair 230ft (70M), Black
The Comprehensive CE-HDBT100 is a HDMI/IR/RS232 Twisted Pair Transmitter and Receiver. The CE-HDBT100 uses HDBaseT technology to deliver HDMI signal and control signal (IR or RS232), over a single STP cable up to 230ft.It is a high performance extender for video conference rooms, educational facilities, control rooms, monitoring centers, government institutions, and demonstration halls, etc. Unit comes with a 2 year warranty.
<b>Features</b>
- Support Full HD: Delivers high resolution image (1080p@60Hz@48 b/pixels/3D/4Kx2K) more than 60m/200ft, over a single STP cable
- The maximum transmission distance is up to 70 meters/230ft with CAT5e/CAT6 cable
- High Bandwidth: 10.2Gps.
- HDTV Compatible. HDMI 1.4 and HDCP compliant
- Bi-directional RS232 control
- Bi-directional IR control
- Uses HDBaseT technology
- LED indicators show work status
- Wall/table-mountable aluminum enclosure
- External international power supply (100Volt~240Volt AC, 50/60Hz)
- Note: Shielded CAT5/6 cable recommended to make best transmission
