技术细节
| 外接电源转接器 |
N |
| 视频接口类型 |
DVI |
| 带宽 |
10.2 Gbit/s |
| HDCP |
Y |

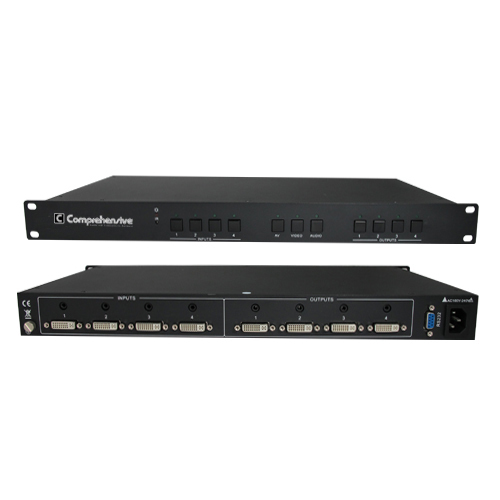

DVI 4x4 Matrix Switcher with Stereo Audio, 1.5 kg, Black
The Comprehensive CSW-DVI440A is the 4x4 matrix switcher for routing DVI and stereo audio with resolution up to 1920 x 1200 or 1080P, supporting crosspoint switching as well as audio following or break way. It is compliant with HDCP1.3 and supports EDID, controllable via IR remote, front panel and RS232 control. It is the high performance device for the video conference rooms, educational facilities, control rooms, monitoring centers, government institutions and demonstration hall, etc. Unit comes with a 2 year warranty.
<b>Features</b>
- 10.2Gbit/s data rate (340MHZ)
- DVI-I connector, dual-link version (Fully compatible with HDMI signal)
- Built-in the HDCP internal management, DVI1.0, HDMI 1.3
- Built-in EDID (Extended Display Identification Data) and DDC management
- High resolution displaying, up to 1080P, 1920*1200@60Hz, HDTV compatible
- Audio break away switching, by 3.5mm mini jack
- Lip-Sync passes through
- 340MHz (up to 16 bit Y-U-V 444 supported @ 1080p)
- Deep color supported (XV color supported)
- Dolby digital-true HD, DTS-HD supported
- CEC protocol passes through
- RS232 serial control port, using serial commands
- IR remote control. Default IR remote to control all function of matrix switcher
- 1U, rack-mountable aluminium enclosure
- IR remote control. Default IR remote to control the full function of matrix switcher
- 9 global presets, to save and recall the function
- Quick switching speed: 200ns (Max). It is high speed for good performance
- LED indicator, it shows you the system information, switching information of the product
- Internal international power supply (100Volt~240Volt AC, 50/60Hz)
- For worldwide compatibility, all models are equipped with an internal, auto-switching power supply that meets or exceeds all appropriate safety certifications
