数据传输
| MAC 地址表 |
1000 entries |
| 存储转发 |
Y |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 全双工传输 |
Y |
| 10G支持 |
N |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
8 |
| DC-IN插口 |
Y |
| 基本交换 RJ-45 以太网端口类型 |
Fast Ethernet (10/100) |

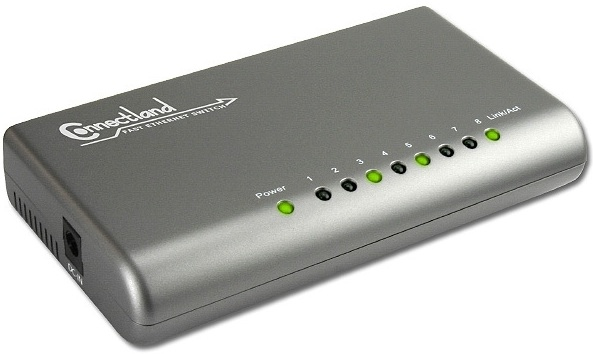

Fast Ethernet, 8 x RJ-45, Grey
Green Ethernet technology to save power.
N-Way protocol for automatic negotiation in 10/100 Mbps.
MDI/MDI-X function to allow straight and crossover cables.
Magnetized base for attachment to a metallic surface.
5V 600 mA external power supply.
- 8 ports 10/100 Mbps MDI/MDI-X switch.
- NWay auto-detection and recognition in Half/Full Duplex modes.
- Store-and-forward architecture and CRC error packets.
- Supports 1K address MAC entries. 768 Ko buffer memory.
- Compatible with IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet.
- Green Ethernet technology to save power.
- Sleep mode during periods of inactivity.
- Transfer optimization according to the length cable.
