存储介质
| 固态硬盘/固态硬盘 组合架 |
Y |
| 支持的硬盘数量 |
3 |
设计
| 支持的主板外形 |
Mini-ITX |
| 5.25" 托架数量 |
1 |
| 3.5" 托架数量 |
3 |
| 内部3.5英寸托架数量 |
3 |
| 最大显卡长度 |
343 mm |
| 最大CPU散热器高度 |
65 mm |
| 最大PSU长度 |
180 mm |
| 扩展插槽数 |
2 |
| 格式要素 |
Cube |
| 类型 |
PC |
冷却
| 最大前部风扇 |
1 |
| 支持的侧面风扇直径 |
80 mm |
| 最大侧风扇 |
1 |
| 前部风扇安装 |
1x 120 mm |
| 安装的侧面风扇 |
1x 80 mm |
端口 & 界面
| USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |
Mini ITX, USB 3.0 x 2, Steel Alloy, 3.1 kg, Black

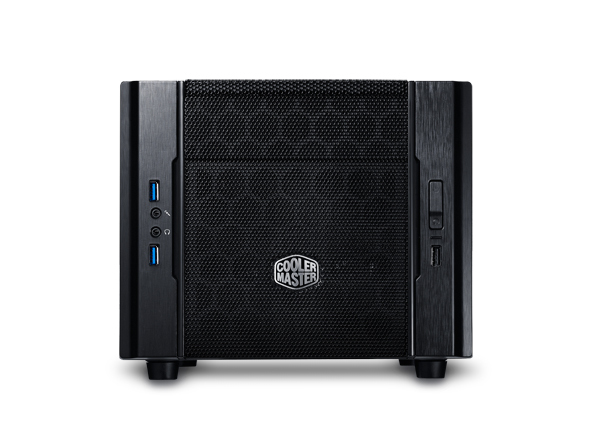

Compact Yet Powerful- Elite 130
The Elite 130 is an ultra compact case with support for full size high-end desktop components. Other than conventional Mini-ITX cases, the Elite 130 supports more affordable, efficient and easily available full size ATX PSU's. It can accommodate even the largest high-end VGAs, a 5.25" optical drive and up to 3 HDDs and 4 SSDs. You can even install a 120mm radiator in the front for extreme cooling. Thanks to a smart airflow system featuring 2 fans and the full mesh front panel it manages to still keep the system extremely cool.
- Unprecedented airflow for a Mini-ITX case with front mesh panel and vents on the top and side panels
- Dual Super Speed USB 3.0
- Supports a 120mm radiator in the front
- Supports standard length ATX PSU
- Supports ultra high-end graphics card up to 343mm / 13.5 inch, such as AMD HD7990 and NVIDIA GTX690
- Ample storage – up to 1 ODD / 3 HDDs / 5 SSDs:
- ODD x 1 + HDD x 2 + SSD x 1
- + HDD x 3 + SSD x 1
- + HDD x 2 + SSD x 3
- + HDD x 1 + SSD x 4
- + SSD x 5
