重量和尺寸
| 散热器深度 |
27 mm |
| 散热器高度 |
120 mm |
| 散热器宽度 |
273 mm |
| 风扇直径 |
120 mm |
| 风扇厚度 |
25 mm |
技术细节
| 噪音水平 |
40 dB |
| 最小气流 |
19.17 cfm |
| 风扇数量 |
2 fan(s) |
| 散热器 |
Y |
| 风扇 |
Y |
| 处理器插座 |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, Socket FM1 |
| 风扇速度(最大) |
2400 RPM |
| 风扇速度(最小) |
600 RPM |
| 风扇连接器 |
4-pin |
| 最大气流 |
86.15 cfm |
能量控制
| 泵电流 |
150 mA |
| 泵电压 |
12 V |
| 风扇电流 |
0.2 A |
| 风扇电压 |
12 V |
设计
| 散热器材质 |
Aluminium |
| 水阻块材料 |
Copper |
2 x 120 mm, Intel/AMD, 600 - 2400 RPM, 0.31 - 4.16 mm H2O

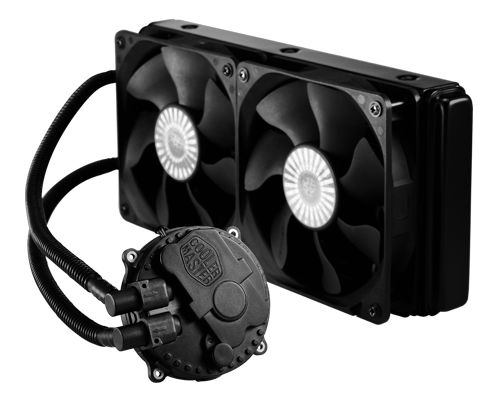

The Seidon 240M is Cooler Master’s latest addition to its incredibly compact watercooling kit line that aims to bring watercooling to the masses. It fits in many cases that support 2 x 120mm fan radiators, is compatible with every available Intel and AMD platform, and is as easy to install as traditional heatsink. It comes factory filled, sealed and tested with a two year zero maintenance guarantee. Thanks to two 120mm PWM fans with a wide RPM range, Seidon can operate silently or unleash a powerful cooling storm at your command.
- Factory filled with coolant, then sealed and pressure tested - requires zero maintenance for years.
- Waterblock made with UltraFine Micro Channel enlarge the contact surface between cold plate and coolant.
- Durable and powerful water pump – dissipates heat effectively and maintains temperatures through stable water circulation.
- Performance 240mm radiator is designed for handling high wattage overclocked CPU.
- Double 120mm PWM fan with a wide RPM range to fine tune and balance fan noise and performance.
