设计
| 支持的主板外形 |
ATX, Micro-ATX, Mini-ITX |
| 5.25" 托架数量 |
2 |
| 3.5" 托架数量 |
3 |
| 内部3.5英寸托架数量 |
3 |
| 侧窗 |
Y |
| 2.5" 托架数量 |
2 |
| 最大显卡长度 |
420 mm |
| 最大CPU散热器高度 |
157 mm |
| 最大PSU长度 |
288 mm |
| 外部5.25“托架数量 |
2 |
| 照明 |
Y |
| 扩展插槽数 |
7 |
| 格式要素 |
Midi-Tower |
| 类型 |
PC |
| 适用于 |
Gaming |
冷却
| 支持的顶部风扇直径 |
120 mm |
| 最大前部风扇 |
2 |
| 支持的后部风扇直径 |
120 mm |
| 最大后部风扇 |
1 |
| 最大顶部风扇 |
2 |
| 最大底部风扇 |
1 |
| 安装的后部风扇 |
1x 120 mm |
| 液体冷却能力 |
Y |
| 前部风扇安装 |
1x 120 mm |
| 支持的底部风扇直径 |
120 mm |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |

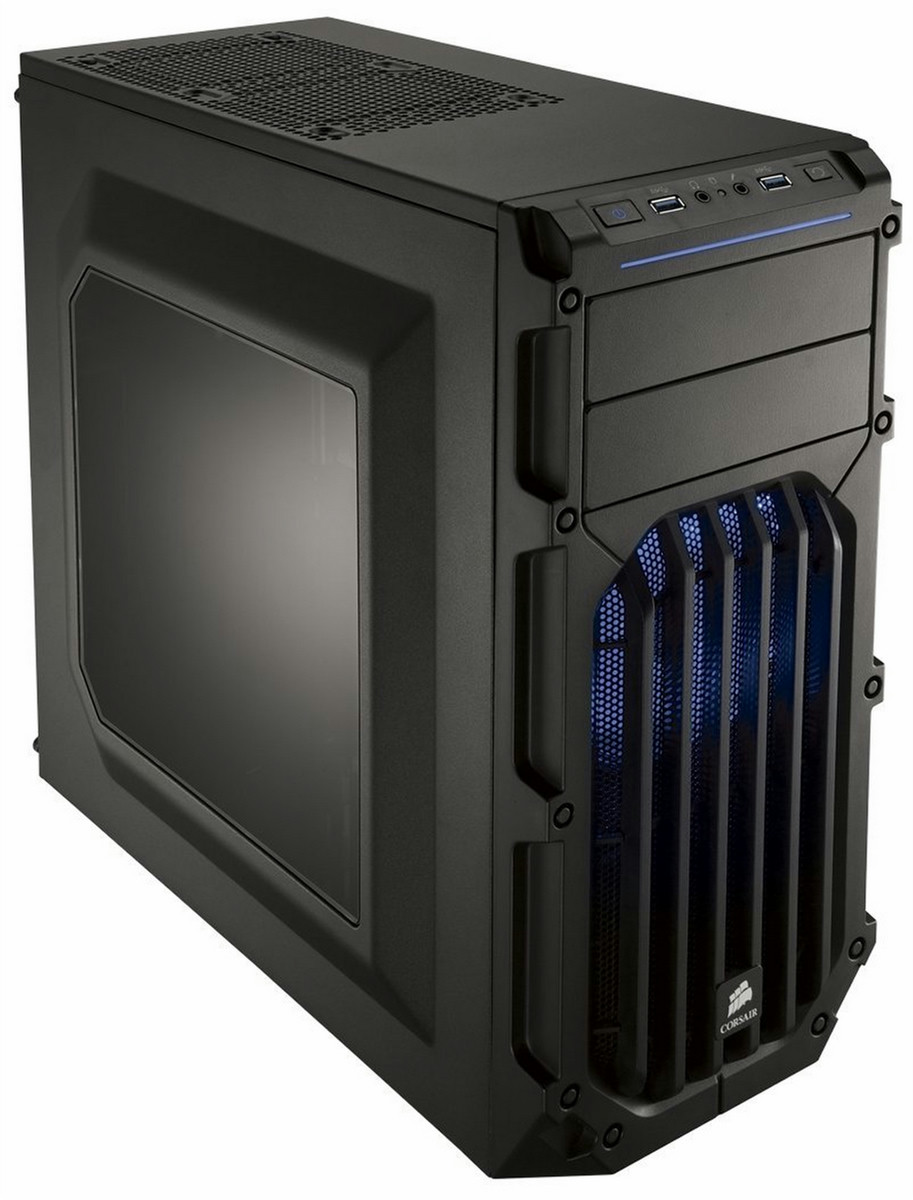

Carbide SPEC-03, Mid-Tower, 2x 5.25", 3x 3.5", 2x 2.5", USB 3.0, Blue LED, 5kg
High airflow, industrial good looks, and an easy to use, modern layout.
Carbide Series SPEC-03 has an extremely aggressive, game-oriented design and superior air cooling for your high-performance GPUs. The cleverly designed interior allows for the included LED-lit front intake fan to draw cold air directly to your graphics cards, and there’s room for up to six fans for massive cooling potential.
There’s a huge windowed side panel that lets you admire your work, and the cable routing system and dust filters help you build a clean system and keep it clean, too. Tool-free installation of up to three 3.5” hard drives and two solid-state drives make it easy to add and upgrade storage. And, it’s easy to live with, too -- the dual front panel USB 3.0 ports let you take advantage of the latest high-speed storage devices.
Huge side panel window
The aggressive look of the SPEC-03 makes it look great on the outside, but there’s beauty on the inside of a well-built system, too. The large side panel window lets you show it off.
LED front intake fan, with room for more
The 120mm front intake fan is bathed in soft LED lighting, and it’s oriented to draw cool air directly across your graphics cards. And if you want even more ventilation, you can add a second 120mm fan or even dual 140mm fans.
Flexible cooling potential
Like all Corsair cases, the SPEC-03 is designed for cooling, so you’re covered if you’re overclocking, running multiple GPUs, or if you just want more airflow. There are mounting points for up to six fans, including dual front 140mm or 120mm fans, dual 120mm fans on top, a bottom-mounted 120mm fan, and a rear 120mm fan.
Multiple drive bays
In addition to the two standard 5.25” optical drive bays, there are three 3.5” hard drive bays and two 2.5” solid-state drive bays.
Easy system builds, maintenance and upgrades
Builds should be easy, no matter what your budget. Drive installation is tool-free, and you get cable routing holes for neater-looking builds and better airflow. And, there’s a CPU cutout to allow for cooling upgrades without removing the motherboard. The front intake fan filters help keep dust out of the interior, and the front panel has dual USB 3.0 ports for fast performance from USB flash drives and portable hard drives.
