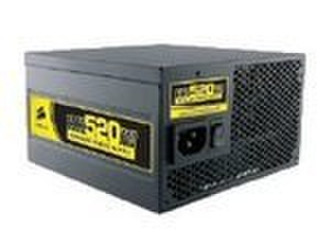

HX520W Power Supply
- Supports the latest ATX12V v2.2 and EPS12V 2.91 standards and is backwards compatible with ATX12V 2.01 systems.
- Guaranteed compatibility with dual-GPU configurations.
- Double forward switching circuitry design offers high efficiency, up to 80% under wide load range.
- Active Power Factor Correction with PF value=0.99 provides clean and reliable power to your system.
- Universal AC input 90~264V automatically scans and detects the correct voltage. No more hassle of flipping that tiny red switch!
- Ultra quiet 120mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.
- Guaranteed to deliver rated specifications at 50єC.
- Triple 12V Rails provide independent reliable power to the CPU, video card and other components with a combined rating of 50A (40A on 520W) maximum! Advanced circuitry design that automatically enables power sharing between the triple +12V rails in an event of overload on any single +12V rail.
- Powerful +5Vsb rail with 3A rating.
- Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety for your critical system components.
- 105єC rated industrial grade capacitors provide uncompromised performance and reliability, delivering 4 times the lifespan of conventional 85єC rated capacitors.
- Enhanced modular flexible cables enable easier cable routing and increased airflow in the system.
- Gold Plated connectors provide oxide free ultra low-resistance contact between the power supply and your critical components.
