设计
| 类型 |
PC |
| 2.5" 托架数量 |
1 |
| 内部5.25支架数量 |
3 |
| 侧窗 |
N |
| 格式要素 |
Midi-Tower |
| 3.5" 托架数量 |
7 |
| 5.25" 托架数量 |
3 |
| 内部3.5英寸托架数量 |
6 |
冷却
| 支持的底部风扇直径 |
120 mm |
| 最大顶部风扇 |
2 |
| 最大侧风扇 |
2 |
| 支持的侧面风扇直径 |
120 mm |
| 支持的后部风扇直径 |
120 mm |
| 安装的后部风扇 |
1x 120 mm |
端口 & 界面
| USB 3.0(第 1代3.1)Type-A 端口数量 |
1 |

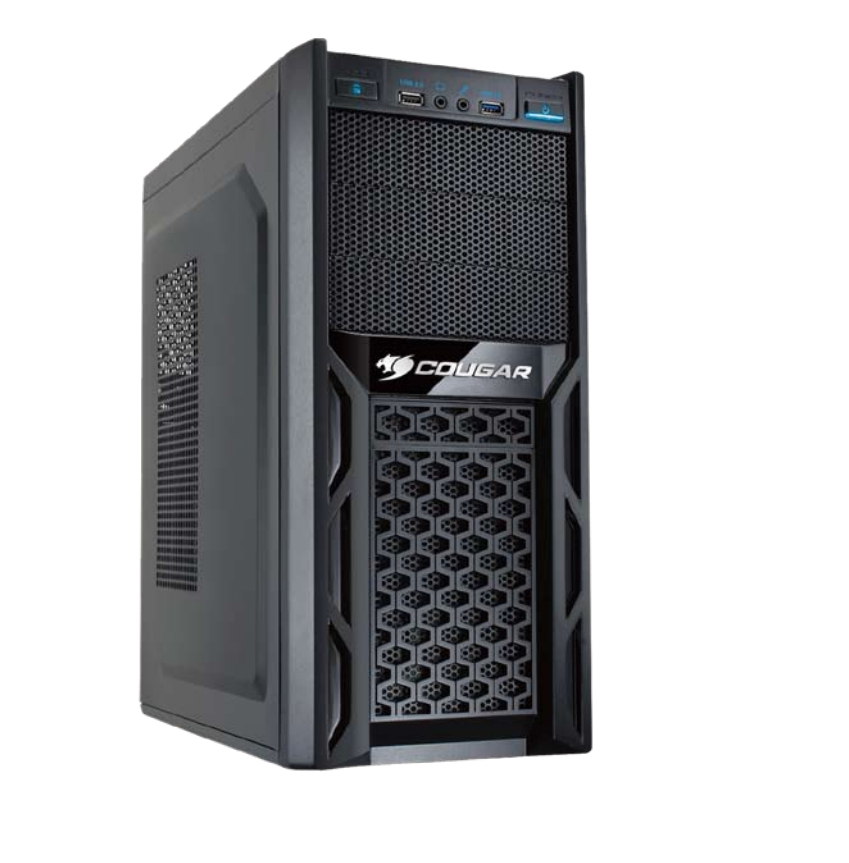

Middle Tower, Micro ATX/ATX, Black
- Unique honeycomb & mesh hybrid intake design with rugged
- strong appearance
- Support for 8 fans: front 120mm fan x2 or 140mm fan x1; rear 120mm fan x1; top 120mm fan x 2; bottom 120mm fan x1; left-side panel 120mm fan x2
- Support for longer high-end graphics cards (up to 320 mm)
- Screw-less mechanisms on 5.25", 3.5" & HDD device
- Support 2.5" HDD/SSD
- Holes on the rear panel for water cooling solutions
- Retaining holes in the motherboard tray for easy accessing the backplate of the CPU cooler
- Cable routing holes on the motherboard tray for easy routing and hiding cables behind the MB tray
- Vented slot covers for better cooling performance
- Air filter for the power supply fan
