其他功能
| 深度 |
23.6 " |
| 电池类型 |
12V/9AH |
| 內置式 |
N |
| 高度 |
3.5 " |
| 最低规格(宽 x 深 x 高) |
17.25 " |
| 格式要素 |
2U |
电池
| 电池技术 |
Sealed Lead Acid (VRLA) |
| 包括电池的数量 |
12 |
| 认证 |
UL1778, cUL, FCC DOC Class B\nROHS |
| 输出电流 |
75 A |
| 电池充电时间 |
8 h |
| 电池电压 |
48 V |
环境条件
| 储存温度范围 (T-T) |
-15 - 45 °C |
| 运行湿度范围(H-H) |
0 - 95% |
| 工作高度 |
0 - 3000 m |
另外
| 产品色彩 |
Black |
| 运行温度范围(T - T) |
0 - 40 °C |
| 电池性能 |
9000 mAh |
48V, 12 x 12V/9Ah, 2U, Built-in Charger

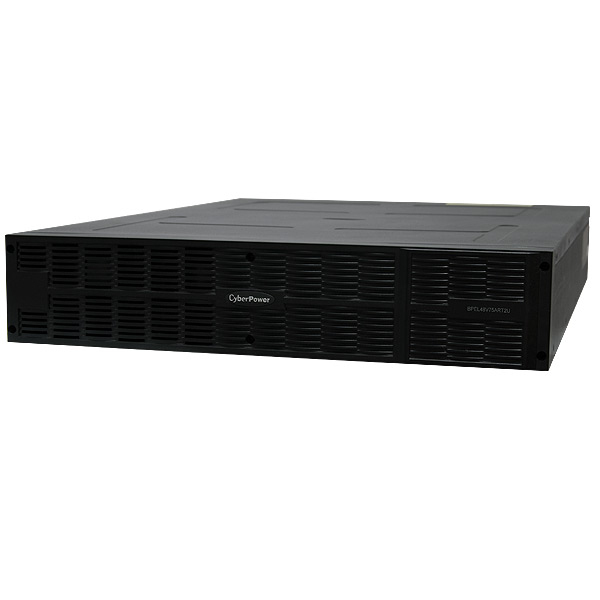

The CyberPower BPL48V75ART2U (48V) external battery pack significantly extends run-time during power outages for Smart App Sinewave UPS models PR3000LCDRTXL2U, PR5000LCDRTXL5U and PR6000LCDRTXL5U.
The BPL48V75ART2U external battery pack houses twelve (12) 12v 9Ah batteries, connected serially in two (2) strings of six (6) batteries. It is designed to match the appearance of the Smart App Online UPS models and can be similarly mounted in 2U rack or tower configurations. A battery data link transmits the unit's diagnostic vitals to the UPS display for real-time monitoring and a heavy gauge power cord, adapted with plug-n-play DC connectors, permits the battery pack to be easily "hot-swapped", ensuring continuous operation of critical systems, during normal UPS maintenance. Rugged, industrial-grade metal construction - meeting the same standards as the UPS models - allows for installation of the unit in demanding environments. A Three-Year Warranty ensures that this battery pack has passed our highest quality standards in design, assembly, material or workmanship
