产品特点
| 类型 |
Wall mounted rack |
| 钥匙锁 |
Y |
| 冷却方式 |
Passive |
| 框架类型 |
Closed |
| 最大承重量(最大载重能力) |
60 kg |

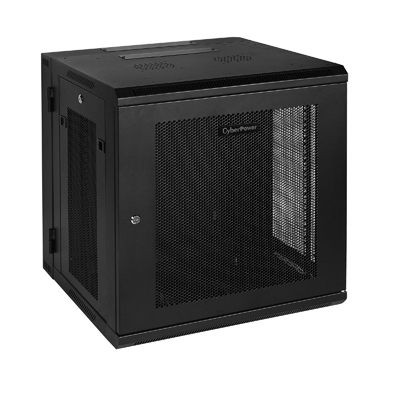

Carbon Wall Mount Enclosure, 12U, 48.26 cm (19 ") , 60kg capacity, IP20
The CR12U51001 is designed for use in network closets, classrooms and other locations. It houses network switches and patch panels up to 22 inches deep. This rack features convenient top panel cable access openings, perforated doors and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR12U51001 ships fully assembled for quick deployment, and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Perforated Front Door and Side Panels
Provides ventilation for small servers and networking equipment.
Reversible Door
Front door has spring loaded hinges and can be easily moved to the opposite side.
Quick Release Side Panels
Lockable side panels can be removed easily for quick access to equipment and cabling.
Cable Access Openings
Slots in the bottom and top provide convenient cable routing to and from the rack.
Rack Mounting Compatibility
The CR12U51001 is compatible with all EIA-310 compliant 19" equipment.
Adjustable Rack Angles
Vertical rack angles can be adjusted in 3/4" increments for mounting depth requirements up to 18.4" with 22" maximum equipment depth. Depth index numbering ensures quick and consistent rail placement. U rack units are numbered front and back for easy equipment installation.
Designed for Stability
A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.
Integrated Electrical grounding
Grounding connections are located on the frame for facility ground.
