性能
| 波形 |
Sine |
| 浪涌保护 |
Y |
| 发声警报器 |
Y |
| UPS 拓扑 |
Standby (Offline) |
| EMI / RFI噪声滤波 |
Y |
| 电源保护功能 |
Overload |
| 浪涌保护功能 |
Modem, Telephone |
能量控制
| 输入工作电压（最大值） |
140 V |
| 输入工作电压（最小值） |
96 V |
| 电源输入频率 |
47/63 Hz |
| 能量波动功率 |
526 J |
| 输出功率（瓦特－安培） |
650 VA |
| 输出功率 |
390 W |
端口 & 界面
| 调制解调器 (RJ-11)接口 |
2 |
| 电源插头 |
NEMA 5-15R |
| 交流电（AC）插座数量 |
8 AC outlet(s) |
环境条件
| 非运行高度 |
0 - 15000 m |
| 工作高度 |
0 - 3000 m |
电池
| 电池充电时间 |
8 h |
| 电池电压 |
12 V |
| 半载典型备用时间 |
10.7 min |
| 全载典型备用时间 |
2.8 min |
650VA, 390W, 8 x NEMA 5-15R Out, NEMA 5-15P In, USB, RJ11 Protection

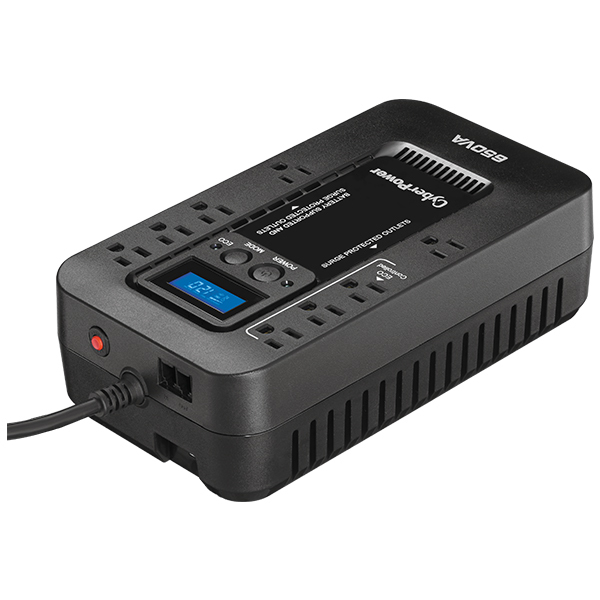

The CyberPower ECO Series EC650LCD uninterruptible power supply (UPS) safeguards PCs and other electronics (monitors, cable DSL/ modems, VoIP routers, and home theater devices) from blackouts, brownouts, surges, spikes, sags, and other power abnormalities. Its composite integrated circuitry offers advanced lightning protection. Patented GreenPower UPS advanced circuitry reduces UPS energy costs and is an ENERGY STAR listed product. The multifunction diagnostic LCD provides users the ability to check UPS operating status and assist in trouble-shooting power anomalies.
The CyberPower EC650LCD has three surge protected ECO outlets. When ECO mode is on and the battery backup detects that your computer is off (or in Sleep mode), computer peripherals connected to the ECO outlets will be turned off (USB connection required). This provides additional reductions in power usage and greater energy savings.
The EC650LCD unit has a capacity of 650VA/390Watts, eight (8) NEMA 5-15R receptacles, including, 3 ECO mode outlets, and two (2) widely-spaced outlets to accommodate transformer-based plugs. Its compact design allows for horizontal or vertical placement, or it can be mounted on a wall. This UPS has a 12-volt maintenance-free sealed lead acid battery. Protection for phone/network (RJ11) is also included. EMI/RFI filters increase the immunity of the load to disturbances and surges.
A HID compliant USB port provides connectivity to the EC650LCD. PowerPanel Personal Edition UPS Management software is included to monitor the vitals of the UPS and will safely shutdown the system in case of a power outage.
A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $100,000 Connected Equipment Guarantee.
