能量控制
| 输入工作电压（最大值） |
154 V |
| 输入工作电压（最小值） |
75 V |
| 电源输入频率 |
50/60 Hz |
| 能量波动功率 |
1030 J |
| 输出功率（瓦特－安培） |
750 VA |
| 输出工作电压（最大值） |
120 V |
| 输出功率 |
525 W |
其他功能
| 输入连接器类型 |
NEMA 5-15P |
| 输出连接器 |
NEMA 5-15R |
| 运行温度范围（T - T） |
35 - 104 °F |
电池
| 电池充电时间 |
8 h |
| 半载典型备用时间 |
15 min |
| 全载典型备用时间 |
3 min |
| 替换电池盒 |
RB1270X2B |
端口 & 界面
| 交流电（AC）插座数量 |
6 AC outlet(s) |

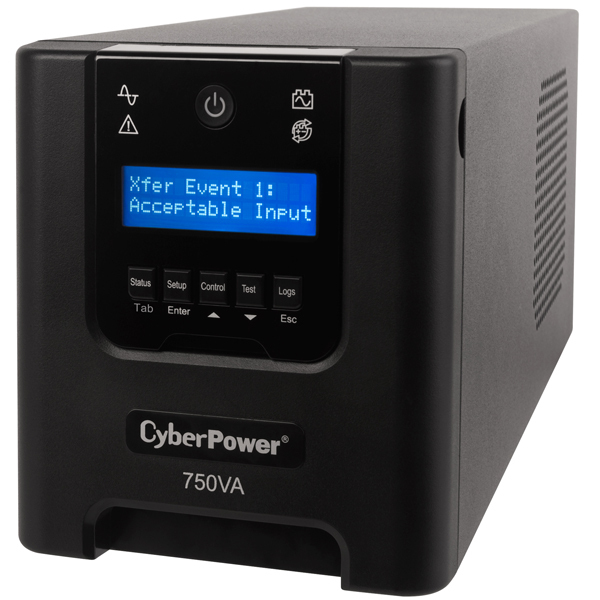

Smart App Sinewave LCD UPS, 750V, 525W, 50/60Hz, NEMA 5-15P/NEMA 5-15R, Black
The NEW CyberPower Smart App Sinewave PR750LCD mini-tower uninterruptible power supply (UPS) with LCD Control Panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck topology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS™ advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.
The LCD Control Panel provides 41 different settings to check status and customize the operating settings for the PR750LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD Control Panel can be removed from the UPS and relocated up to 4.5 FT away from the UPS for ease of viewing when installed in hard to reach locations.
The PR750LCD unit has a capacity of 750VA/525Watts, six (6) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/7.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR750LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.
