端口 & 界面
| 遥控器（IR）输出 |
1 |
| 串口数量 |
1 |
| RJ-45输入端口 |
1 |
| Number of HDMI outputs |
1 |
| RS-232 输出端口 |
1 |
| 串口类型 |
RS-232 |
| USB 连接器形状 |
USB Type-A |
| VGA（D-SUB）输出端口 |
1 |
| USB 端口数量 |
4 |
技术细节
| 视频压缩格式 |
H.264 |
| 波特率 |
115.2 Kbit/s |
| 红外线 IR pass-through 信号传输连接端口 |
Y |
| HDCP |
Y |
| 可支持的电缆类型 |
Cat5e, Cat6, Cat7 |
| 最大传输距离 |
100 m |
| 类型 |
AV receiver |
另外
| 无线连接 |
N |
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
HDMI / VGA over IP Receiver w / USB support (4K, HDCP2.2)

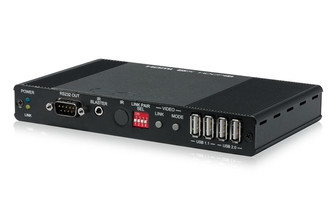

The PU-IP6000RX receiver allows you to receive HDMI or VGA signals over CAT5e/6/7 network cable. This extender is a multi-function receiver that supports Ultra High-Definition signals (up to 4K2K@30Hz, YUV444) for distances up to 100m. This system is perfect for both residential and commercial installation environments.
The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.
This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA input/Output feature, it allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing delay. Control is via On-screen Display (OSD), Telnet, IR Remote, WebGUI and RS-232 commands.
