端口 & 界面
| 遥控器（IR）输出 |
1 |
| 串口数量 |
1 |
| VGA（D-SUB）输入端口 |
1 |
| RS-232 输入端口 |
1 |
| HDMI输入 |
1 |
| 串口类型 |
RS-232 |
| USB 连接器形状 |
USB Type-B |
| VGA（D-SUB）输出端口 |
1 |
| USB 端口数量 |
1 |
| DC-IN插口 |
Y |
技术细节
| 红外线 IR pass-through 信号传输连接端口 |
Y |
| HDCP |
Y |
| 可支持的电缆类型 |
Cat5e, Cat6, Cat7 |
| 最大传输距离 |
100 m |
| 类型 |
AV transmitter |
HDMI / VGA over IP Transmitter w / USB support, 4K, HDCP2.2

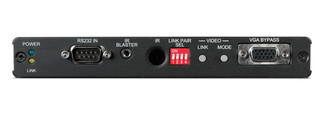

The PU-IP6000TX transmitter allows you to transmit HDMI or VGA signals over CAT5e/6/7 network cable. This extender is multi-function transmitter that supports the transmission of Ultra High-Definition signals (up to 4K2K@30Hz, YUV444) for distances up to 100m. This system is perfect for both residential and commercial installation environments.
The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.
This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA input/Output feature, it allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing delay. Control is via On-screen Display (OSD), Telnet, IR Remote, WebGUI and RS-232 commands.
