端口 & 界面
| 遥控器(IR)输出 |
1 |
| 遥控器(IR)输入 |
1 |
| RJ-45输出端口 |
1 |
| HDMI输入 |
1 |
| USB 端口数量 |
1 |
| DC-IN插口 |
Y |
技术细节
| 带宽 |
10.2 Gbit/s |
| 静电放电(ESD)保护装置 |
8 kV |
| HDCP |
Y |
| 可支持的电缆类型 |
Cat5e, Cat6, Cat7 |
| 最大传输距离 |
60 m |
| 类型 |
AV transmitter |

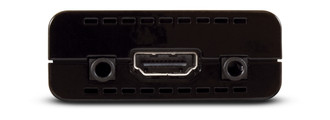

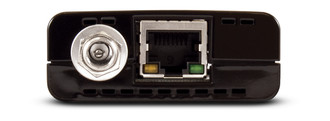

HDBaseT LITE Transmitter w / 2-way IR
The PU-514L-TX is a Transmitter Unit designed to be used with PU-514L-RX Receiver. This device allows uncompressed HDMI, and 2-way IR signals to be transmitted over a Single CAT5e/6/7 cable to distances of up to 60m. Utilise the USB power output from a TV as an optional way of powering the PU-514L-RX receiver unit alternative to a mains power supply.
