调制解调器
| 调制解调器速度 |
24000 Kbit/s |
| 调制解调器型号 |
ADSL |
| 接口 |
RJ-45 / RJ-11 |
协议
| 数据链路协议 |
ADSL2+ / G.dmt |
| 支持的协议 |
OAM F4/F5\nIP - ATM (RFC 1577)\nPPP - ATM (RFC 2364)\nPPP - Ethernet (PPPoE)\nAAL5 |
ADSL2/+ Modem

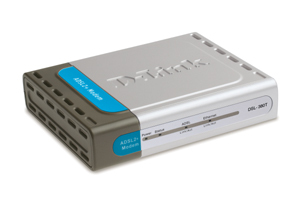

The DSL-380T ADSL2/+ modem is a high-speed broadband modem for home and office use.
Featuring the latest ADSL2/+ standards, this modem provides speeds of up to 24Mbps downstream and 1Mbps upstream (ADSL2+), or 12Mbps downstream and 1Mbps upstream (ADSL2). The modem auto-negotiates the best modulation scheme, using the G.hs (handshake) protocol.
The DSL-380T ADSL2/+ modem support "always on" connections to eliminate dial-up wait time and busy signals. Web surfing and your e-mail are instantly available, any time. Like any ADSL modem, it lets you access the Internet using your existing phone lines, without interfering with
your voice phone service. You can talk on the phone and surf the net at the same time. Along with instant connectivity, you can surf the Internet at very high speeds.
With high-speed connections (depending on the rate that you subscribe with your Internet service provider), you won't have to wait for downloads of graphic-intensive web pages. These speeds are also ideal for on-line audio/video streams, Internet games, VoIP phone
communication applications and transfers of large files over the Internet.
Installation is quick and simple. You connect the modem to any PC with an available Ethernet port, or to a router to share high-speed Internet access with a group of users at home or the office.
High-Speed ADSL Access
- ADSL: G.992.1 G.dmt, G.992.2 G.lite, ANSI T1.413 Issue.
- 2 (Full Rate DMT Over Analog POTS) Annex B.
- ADSL2: G.992.3 (G.dmt.bis) Annex B.
- ADSL2+: G.992.5 Annex B.
- G.994.1 G.hs Auto-Negotiation of Different ADSL Flavors.
Host Interface
- 10/100BASE-TX Ethernet Port With Auto MDI/MDIX.
- O.S.-Independent.
Easy Setup/Flexible Management.
- Local/Remote Management Through Telnet.
- Factory Reset Button.
- TFTP Firmware Upgradeable.
