安全
| 认证方法 |
64/128/152-bit WEP, WPA-PSK, WPA2-PSK, WPA-EAP, WPA2-EAP |
其他功能
| 连通的液晶显示器 |
LAN, WLAN |
| 无线技术 |
IEEE 802.11b/g |
| 遵守工业标准 |
IEEE 802.11b/g, IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.3af |
性能
| 2.4 GHz |
Y |
| 支持服务质量（QoS） |
Y |
| 频段 |
2.4 GHz |
端口 & 界面
| 接口 |
10/100BASE-TX |
| DC-IN插口 |
Y |
另外
| 数据传输率（最大） |
108 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
1 |

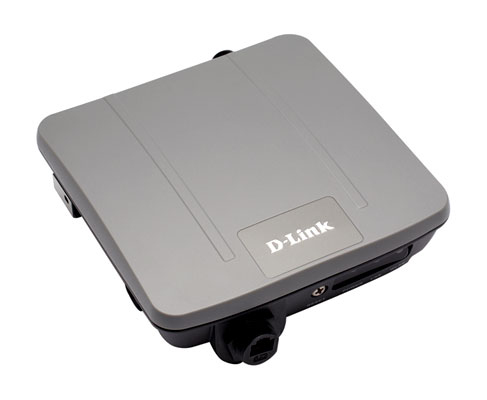

Outdoor 2.4GHz (802.11g) 108Mbps Wireless Access Point/Bridge
The DAP-3220 Wireless 108G Exterior Access Point is the ideal solution for outdoor users that need network and Wi-Fi Internet access at all times. Designed especially for outdoor environments, the DAP-3220 allows 802.11b/g devices to connect with speeds of up to 108Mbps when using 108G Turbo Mode.
Powerful & Durable Outdoor Solution
The DAP-3220 is designed to handle a wide variety of outdoor environments. It has a die-cast watertight housing, a built-in heater and a temperature sensor. Supporting 802.3af Power over Ethernet (PoE), it can be placed at outdoor locations where power outlets are not easily accessible. Besides functioning as an AP, this device can be can be configured to operate as a Wireless Distribution System (WDS) to act as a bridge for linking together networks in different buildings.
Advanced Network Security
The DAP-3220 supports WPA/WPA2 security functions and 64/128/152-bit WEP data encryption. Advanced security features also include VLAN support, scanning for rogue APs, wireless clients’ isolation and DHCP Server with MAC-IP binding.
Network Flexibility and Efficiency
The DAP-3220 supports up to 8 SSID, allowing the administrators to logically divide the access point into several virtual access points all within a single hardware platform. Rather than having separate networks with several access points, administrators can deploy one single AP to support more than one application, such as public Internet access and internal network control to increase flexibility and keep costs down. The DAP-3220 supports 802.1Q VLAN Tagging, operating with multiple SSID to segment traffic to enhance performance and security. The DAP-3220 provides WLAN STA partitioning, a function useful for deployments such as hot spots. With station-to-station partitioning enabled, security is enhanced, since wireless users cannot peek at each other, and the possibility for data thievery is reduced. Administrators can, however, disable this function, so wireless users at an office can share hard disks and information, and peripherals such as wireless printers. The DAP- 3220 also supports AP grouping, allowing several access points to balance wireless network traffic and wireless clients among the APs with the same SSID and different non-overlapping frequency channels.
Network Management
Network administrators have multiple options for managing the DAP-3220 including Web (HTTP), Secure Shell (SSH, which provides for a secure channel between local and remote computers), and Telnet (bi-directional, eight-bit byte oriented communications facility). For advanced network management, administrators can use the D-Link AP Manager II (included) or SNMP (ver.1, 2, 3) software to configure and manage multiple access points from a single location.
