其他功能
| 无线局域网标准 |
802.11b/g |
| 相机文件格式 |
JPEG, MPEG4 |
| 声音文件记录 |
AAC, GSM-AMR |
| Mac兼容性 |
N |
| 最低处理器 |
1.3GHz |
| 支持网络协议 |
TCP/IP, HTTP, SMTP, RTSP, FTP, NTP, DNS, DHCP, UPnP, DDNS, PPPoE |
| 遵守工业标准 |
IEEE 802.11g, IEEE 802.11b |
| 网路功能 |
Fast Ethernet |
| 最低内存 |
256 MB |
性能
| 相机快门速度 |
1/60 - 1/15000 s |
| 最大视频分辨率 |
640 x 480 pixels |
| Maximum frame rate |
30 fps |
设计
| 内置麦克风 |
Y |
| 光学传感器尺寸 |
1/4 " |
| 传感器类型 |
CMOS |
DCS-5220 - 30 fps, 640 x 480 pixels, MPEG4
VIDEO ON-THE-GO

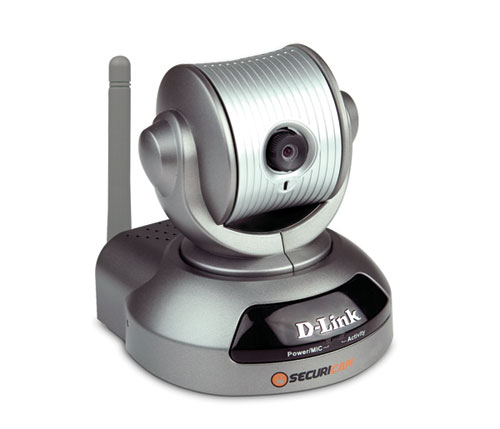

The D-Link Wireless Pan/Tilt Internet Camera (DCS-5220) is the ultimate remote surveillance solution that allows viewing of a live video feed on a compatible 3G mobile phone or PDA. It is perfect for users that are often on the road and desire around-the-clock monitoring for applications such as home/office surveillance, checking up on infants, kids, or family members. Simply connect to the Internet using a 3G-enabled device and monitor the camera’s video feed without needing a computer with an Internet connection1.
FULL-FEATURED SURVEILLANCE SOLUTION WITH MOTORIZED PAN AND TILT
The DCS-5220 can be placed anywhere on the network either through a wired Ethernet or wireless 802.11g/802.11b connection to view the camera’s video feed. Equipped with a 0.5 Lux CMOS Sensor, the DCS-5220 is ideal for a variety of low-light conditions. This full-featured camera boasts motorized pan and tilt capabilities that allow a greater coverage area with a single camera. Using the pan and tilt feature along with 4x digital zoom2, users can zero-in on a subject much more effectively. Simply record video onto your network-based PC or take full advantage of your NAS device by recording video directly onto it. In addition, snapshots/video clips can be instantly taken while viewing the camera’s video feed directly through a Web browser. While monitoring, you can also listen to anyone within close proximity to the camera’s built-in microphone. Furthermore, the DCS-5220 allows you to schedule both recorded video and snapshots to be uploaded onto a ftp server and sent via e-mail.
MOTION DETECTION TRIGGER
With support for MPEG4 recording, the DCS-5220 is well suited for various recording scenarios. MPEG-4 video allows for smaller sized files for extended recording periods or for use in low bandwidth networks. Innovative software is included to enhance the monitoring and management of the DCS-5220. Using the feature-rich IP surveillance program, monitor and manage up to 16 cameras simultaneously, set recording schedules, enable motion detection settings, and change settings to multiple cameras.
WHAT THIS PRODUCT DOES
The D-Link Wireless Pan/Tilt Internet Camera (DCS-5220) is a full-featured surveillance solution that connects to your Ethernet or 802.11g wireless network to provide remote monitoring over the Internet. Use the motorized pan/tilt controls with 4x digital zoom2 to zoom in on images and take snapshots directly from a web browser. You can schedule recorded video or snapshots to be uploaded to a ftp server or sent via e-mail. Equipped with a 0.5 Lux CMOS Sensor, this camera is ideal for low-light conditions. Enable one-way audio with the built-in microphone and listen to any activity or anyone within close proximity to the camera.
REMOTE MONITORING OPTIONS
The DCS-5220 features 3G mobile video support enabling you to view a live video feed from your camera on a compatible 3G mobile phone or PDA anywhere in your 3G coverage area1. The 3G mobile video support expands the functionality of the DCS-5220, allowing you to monitor your remote location without requiring a computer. IP surveillance software is also included to manage up to 16 cameras simultaneously from your computer, send automated e-mail alerts, and record video to your hard drive when motion is detected.
