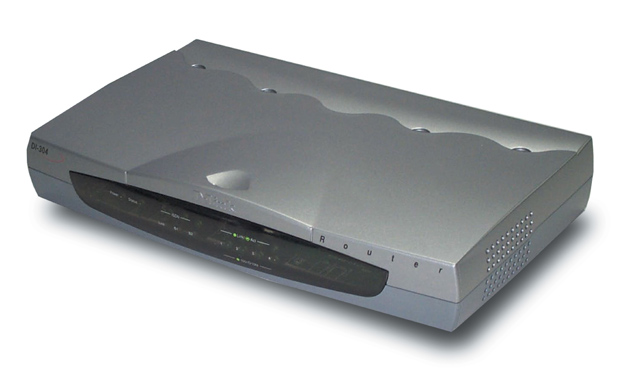

ISDN Remote Access Router w/ 4-port Switch
With 4 Built-in Switch Ports - This router combines ISDN WAN connection with IP routing, Internet gateway and Fast Ethernet switch functions, all in one compact box. It can be used to connect your SOHO to your corporate head office and to the Internet.
An ISDN Basic Rate Interface (BRI) is built into this device. The device links a branch office with a remote LAN such as a head office or another branch office by routing IP packets.
This device also acts as an Internet gateway for your SOHO. Cost-saving Internet functions NAT are provided, allowing your entire office to share one single ISDN line and one single ISP account.
The device automatically assigns IP address for your office users, while masking these addresses from others on the Internet. This kind of firewall makes it more difficult for a hacker to target a computer on your network.
Each ISDN B channel can be used separately to connect to 2 different destinations, or combined together to double the bandwidth in a load-sharing mode (Bandwidth-on-Demand).
This router has 4 10/100Mbps 10BASE-T/ 100BASE-TX Fast Ethernet switch ports built inside. Each of these ports provides a dedicated bandwidth. Workstations, print servers and file servers can directly connect to this router, dispensing you of the need to purchase and install a separate switch.
Product Description
1 ISDN port, 4 10/100Mbps switch ports
IP routing
RIP-1, RIP-2 routing protocol support
Network Address Translator (NAT) support
IP pool with dynamic IP assignment for remote users
Simultaneous ISDN connection to 2 locations
Connect-on-Demand with protocol spoofing
IP spoofing
TM - Hi/fn LZS (Stac) compression
RADIUS security protocol support
PPP/MP protocol for 128Kbps
