端口 & 界面
| 支持以太网（PoE） |
Y |
| VGA（D-SUB）输出端口 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
1 |
| 音频 RCA 输出接口 |
1 |
| 音频 RCA 输入接口 |
1 |
系统要求
| 浏览器支持 |
Internet Explorer, Firefox, Safari |
性能
| 内存类型 |
DDR3 |
| 风扇数量 |
1 |
| 速射 |
Y |
| 视频输入通道 |
16 |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 备份功能 |
Y |
| 以太网铜缆技术 |
1000BASE-T, 100BASE-T, 10BASE-T |
| Maximum frame rate |
480 fps |
| PTZ控制（平移/倾斜/缩放） |
Y |
| 动态主机配置协议服务器 |
Y |
| 动态主机配置协议客户 |
Y |
| 内置存储器 |
1024 MB |
| 电子地图功能 |
Y |
| Custom sequence mode |
Y |
| 序列模式 |
Y |
| 警报器输出通道 |
1 |
| 警报器输入通道 |
4 |
| 播放控制器 |
Y |
存储介质
| RAID支持 |
Y |
| 最大存储容量 |
16 TB |
| 硬盘接口 |
Serial ATA II, Serial ATA III |
另外
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
| HDMI 输出端口 |
Y |
16-Channel, EXT3, RAID, H.264, PoE, 1024 MB DDR3, LAN, HDMI, D-sub, USB

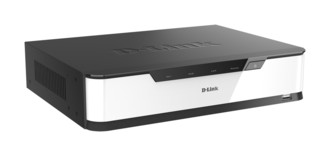

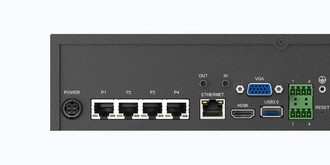

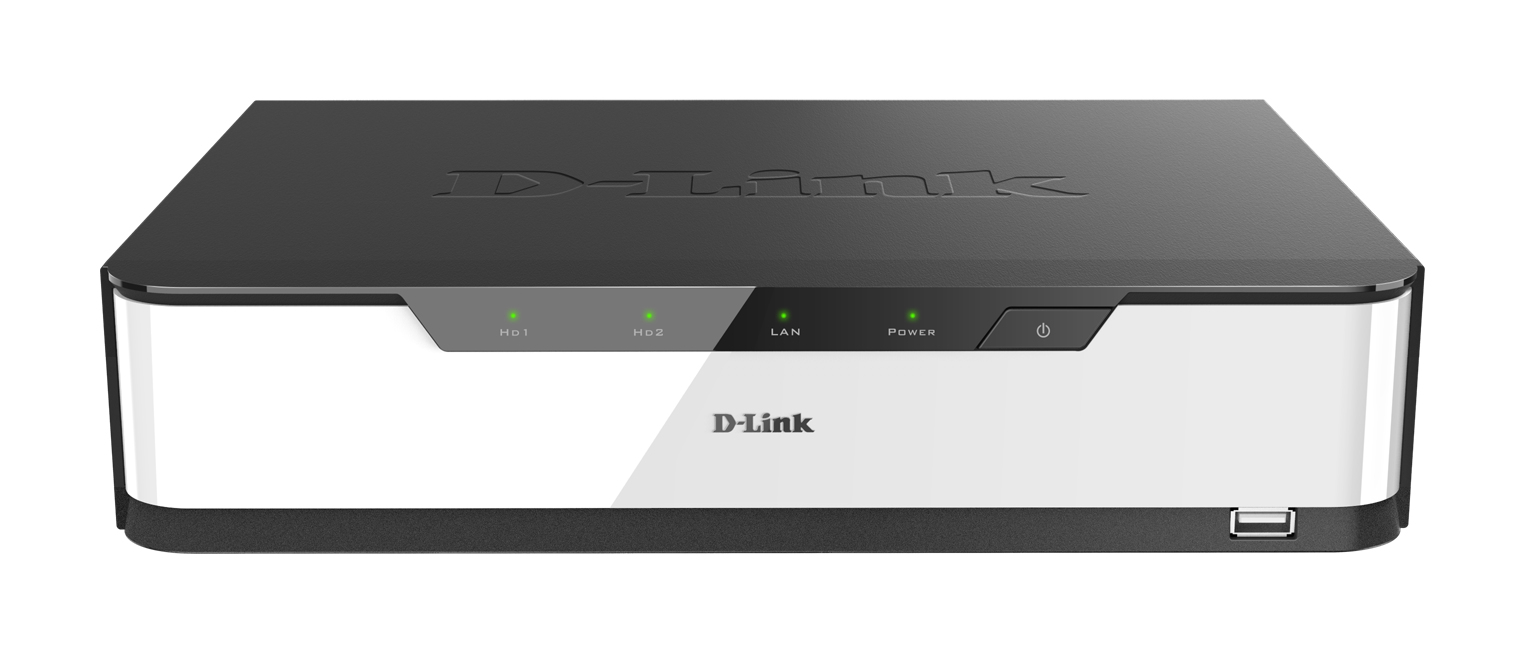

The DNR-2020-04P JustConnect 16-Channel PoE Network Video Recorder is an all-in-one network video recorder (NVR) that can record video from up to 16 network cameras to its dual HDD storage. With the integrated HDMI/VGA display output and USB port, users can view, control and configure the DNR-2020-04P without the need to turn on their PC.
Featuring Power over Ethernet (PoE), the NVR supplies power to up to four PoE cameras, saving valuable time and electrical installation costs during setup.
Powered by an embedded system, the DNR-2020-04P supports real-time remote monitoring and playback via a web browser using the NVR's web GUI. Additionally, support for audio in/out, DI/DO triggering, and external USB 3.0 storage for video export and backups fill the needs of small businesses.
The NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded data onto two separate hard drives. In the event of HDD failure, data integrity is maintained on the secondary HDD. The recorded data can be backed up to external USB disks or additional storage locations such as FTP servers whenever required.
The included DCS-260 Multi-NVR Viewer is a comprehensive network surveillance software designed for SMB and enterprise users. Using an intuitive user interface, you can centrally manage up to 128 NVR devices and network cameras, allowing you to efficiently control multiple D-Link NVRs located in different areas.
Users can remotely monitor their surveillance network in real-time through the JustConnect+ mobile app for smart phones or tablets. It offers total peace-of-mind 24/7 for business owners to view live video or playback recorded footage, at anytime, when connected to the Internet.
