技术细节
| 内置存储器 |
16 MB |
| 闪存 |
2 MB |
| PTZ控制（平移/倾斜/缩放） |
Y |
端口 & 界面
| I / O端子端口 |
2 |
| RS-485端口 |
1 |
| BNC输入端口 |
1 |
联网
| 以太网铜缆技术 |
100BASE-TX, 100BASE-T, 10BASE-T |
| 无线局域网连接 |
N |
| 支持网络协议 |
TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP |
视频
| Maximum frame rate |
30 fps |
| 最大视频分辨率 |
704 x 576 pixels |
| PAL分辨率 |
704 x 576 pixels |
| NTSC分辨率 |
704 x 480 pixels |

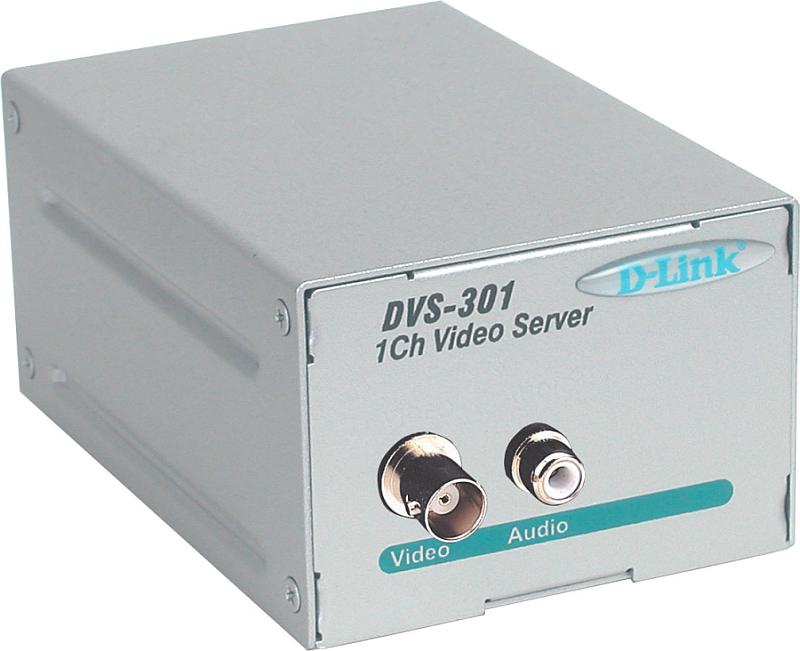

DVS-301, 1ch, 50-16000Hz, 1 x BNC, 16MB SDRAM, 2MB Flash ROM, 1 x 10/100Base-TX, 1 x RS-232, 1 x RS-485, Silver
<b>M-JPEG 1-Channel Video Server</b>
<b>Transform Analog Video Into Images for Live Access Over Intranet or Internet</b>
The DVS-301 is a high-performance M-JPEG video server designed for professional surveillance applications. It can network an analog camera - a cost-effective single-box solution for transmitting digital video over your company network or the Internet.
<b>Save Money & Get Benefits of Digital World</b>
You have invested time and money to install an analog surveillance system in your building, with analog cameras, multiplexers, time-lapse recorders, cabling and control room. There are drawbacks such as poor quality video, worn out tapes, video recorders that constantly need servicing, and no possibility to access live images when you are outside the building. By adding a DVS-301, you can turn your camera into a digital system and have images stored on a hard disk at a remote location for convenience and security purposes. You don't need to buy video tapes, change video tapes or service the video recorder. Digital storage also reduces the risk of image degradation and provides quick and easy search capabilities.
<b>Protect Previous Investments</b>
The DVS-301 integrates easily with your existing analog CCTV (closed circuit television) system. You can get all the digital benefits without scrapping your investment in an analog system.
<b>Remote Access</b>
The DVS-301 digitizes analog video signals and distributes digital images directly over an IP-based network, effectively turning your analog camera into a network camera and enables you to view live images from a Web browser . The DVS-301 allows you to remotely view live digital images derived from your analog cameras at any time, from any location using a networked computer. Y ou can check on alarms while on the road or from the convenience of your own home. Images from an alarm event could be easily distributed via computer networks to many people in different locations for further examination.
<b>Easy to Install & Use</b>
With the DVS-301, you can have a professional surveillance application up and running in minutes. It is easy to install. Simply plug an analog camera into the server and images can be transmitted via a LAN, DSL, or analog modem. All that is needed on the receiving end is a networked computer with a Web browser. Usually, an IP-based computer network is already in place, which saves on infrastructure costs.
<b>Connectable to Control Equipment</b>
Through a built-in RS-232 serial port, you can control equipment such as Pan/Tilt/Zoom cameras. Inputs can be used to trigger the server to start transmitting images. The DVS-301 can also be connected to special cameras such as super sensitive black/white cameras, miniature cameras or microscope cameras.
