能量控制
| 能源之星认证 |
Y |
| 功耗（一般操作） |
90.81 W |
| 交流电（AC）输入电压 |
100-240 V |
设计
| 机架安装 |
Y |
| 安全 |
cUL, CB, CE, CCC, BSMI |
| 液晶显示器指示灯 |
Y |
| 格式要素 |
1U |
| 认证 |
CE, FCC, C-Ticket, VCCI, BSMI, CCC |
数据传输
| MAC 地址表 |
16000 entries |
| 交换容量 |
240 Gbit/s |
| 吞吐量 |
178.56 Mpps |
联网
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 生成树协议 |
Y |
| 网络标准 |
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| 10G支持 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
12 |
| SFP +模块插槽数量 |
2 |
| Combo SFP 端口数量 |
2 |
| DC-IN插口 |
Y |
| 基本交换 RJ-45 以太网端口类型 |
10G Ethernet (100/1000/10000) |
环境条件
| 运行湿度范围(H-H) |
0 - 95% |
| 储存温度范围 (T-T) |
-40 - 70 °C |
重量和尺寸
| 深度 |
440 mm |
| 重量 |
3150 g |
| 宽度 |
210 mm |
| 高度 |
44 mm |
另外
| 运行温度范围（T - T） |
-5 - 50 °C |
| 产品色彩 |
Black, Silver |
| 巨型帧 |
Y |

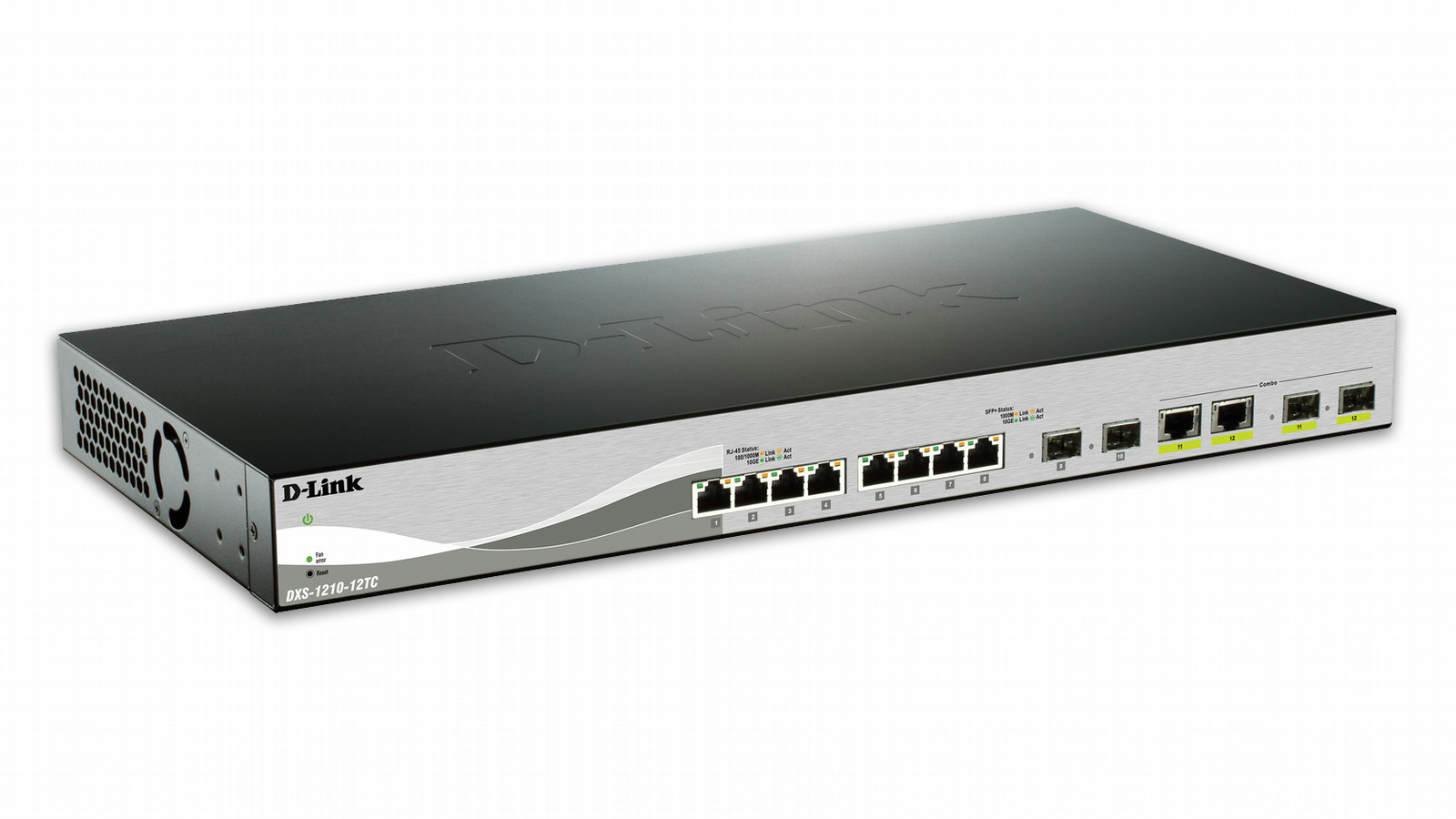

240 Gbps, 10x 10G Base-T, 2x SFP+, 2x SFP+/Combo, 91W
10 Gigabit Ethernet For Everyone
10 Gigabit Switches used to be the exclusive realm of large companies. Now, D-Link’s DXS-1210 Series of 10 Gigabit Ethernet Smart Managed Switches brings the business benefits of high performance and low latency of 10G Ethernet to businesses of all sizes.
Enterprise Functionality at Small Business Prices
Our DXS-1210 switches are a cost-effective solution capable of servicing a range of network needs in businesses of any size.
Flexibility without Compromise
Supporting 10 GBASE-T / SFP+ combo ports, they provide flexibility across a network allowing easier network integration, and with high-performance and low latency they fulfil the need for virtualisation, cloud services and server-to-server applications - perfect for small to medium sized businesses.
High Performance and Low Latency
D-Link’s DXS-1210 Series specifically delivers up to 238* Mbps Maximum Packet Forwarding Rate enabling simultaneous traffic processing on all ports at line rate without any packet loss.
Switching capacity of up to 320 Gbps for the DXS-1210-16TC, up to 240 Gbps for the DXS-1210-12TC and up to 200 Gbps for the DXS-1210-10TS.
Advanced Green Technology
The DXS-1210 Switch Series offers advanced green technology without sacrificing performance or functionality. We take the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy.
