端口 & 界面
| DC-IN插口 |
Y |
| 鼠标接口类型 |
PS/2 |
| 键盘接口类型 |
PS/2 |
| 计算机数量 |
16 |
| 视频接口类型 |
VGA |

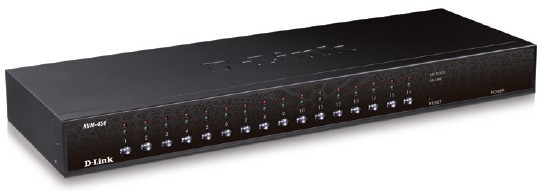

KVM-450, 9x HDB-15, 2x 6-pin mini-DIN, PS/2, Mini USB, 2048 x 1536, 1900g, Black
The KVM-440 Combo KVM Switch can control attaching PS/2 and USB servers from local console; The KVM switch supports cascades of up to 3 levels. Control up to 4086 PCs from a single console. Cascaded units do not require any special configuration. A cascade configuration expands the system’s capabilities and allows you to select computers connected to the Master or Slave. Once connected, the KVM Switches will automatically configure themselves appropriately as the Master or Slave. You can control computers via KVM-450 KVM Switch by push button, hot key and OSD Menu. It has complete keyboard and mouse emulation for simultaneous computer boot-up processes and also allow you to add or remove devices to the KVM without the need to shut it down.
- On-screen Display (OSD);
- Supports daisy chaining with up to 3 cascade levels. Cascaded units do not require a special configuration;
- Keyboard emulation prevents boot errors;
- Supports hot-plugging: All devices connected to the KVM can be added or removed at any time without shutting down the KVM;
- Select a PC to switch to using one of 3 interfaces:
- Front Panel Button;
- Hot-Keys on a PS/2 keyboard;
- OSD Menu (On Screen Display);
- LED display for PC and/or server status monitoring;
- Fully compliant with USB 1.1/ 2.0 specifications;
- Support for Windows, Linux, Mac OS 9/ OS X, and Sun Microsystems Operating Systems;
- Rack mountable in 19” system rack (1U);
- Monitor resolutions of up to 2048 x 1536;
- D-Link’s 4 in 1 Cables allow you to easily connect multiple PCs or chain several KVM switches together (KVM-401 and KVM-402).
