产品特点
| Z-Wave频率 |
868.4 MHz |
| 内置麦克风 |
Y |
中央控制单元装置 (CCU)
| 中央控制单元接口 |
RF Wireless |
| 中央控制单元连接方式 |
Wi-Fi |
| 中央控制单元电池电压 |
5 V |
| 中央控制单元电池电流 |
1.2 A |
| Wi-Fi频率 |
2.4 GHz |
| 中央控制单元运行温度范围（T - T） |
0 - 40 °C |
| 中央控制单元储存温度范围（T - T） |
-20 - 70 °C |
| 中央控制单元操作相对湿度 (H-H) |
20 - 90% |
| 中央控制单元储存相对湿度范围（H - H） |
5 - 95% |
| 中央控制单元尺寸（宽 x 深 x 高） |
100 x 100 x 110 mm |
| 中央控制单元重量 |
180 g |
| Wi-Fi （中央控制单元） |
Y |
| USB端口 |
Y |
| 无线局域网类型 |
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| 支持网络协议 |
ARP, ICMP, TCP/IP, IPv4 and IPv6, HNAP, DHCP client, NTP client, Bonjour. 802.11b/g/n, Z-Wave v6.02 |
| USB版本 |
2.0 |
传感器
| 门/窗传感器接口 |
RF Wireless |
| 门/窗传感器连接方式 |
Z-Wave |
| 门/窗传感器电池类型 |
CR123A |
| 门/窗传感器运行温度范围（T - T） |
-10 - 40 °C |
| 门/窗传感器储存温度范围（T - T） |
-20 - 70 °C |
| 门/窗传感器操作相对湿度 (H-H) |
20 - 90% |
| 门/窗传感器储存相对湿度范围（H - H） |
5 - 95% |
| 门/窗传感器尺寸（宽 x 深 x 高） |
96 x 28 x 23 mm |
| 门/窗磁感应器尺寸（宽 x 深 x 高） |
50 x 10 x 12 mm |
| 门/窗传感器重量 |
34.1 g |
| 门/窗传感器 |
Y |
| 运动传感器 |
Y |
警报器配置
| 警笛器连接方式 |
Z-Wave |
| 警笛器运行温度范围（T - T） |
-10 - 40 °C |
| 警笛储存温度范围（T - T） |
-20 - 70 °C |
| 警笛器工作相对湿度 (H-H) |
20 - 90% |
| 警笛储存相对湿度范围（H - H） |
5 - 95% |
| 警笛器的尺寸 （宽 x 深 x 高） |
110 x 110 x 19 mm |
| 警笛的重量 |
125 g |
| 警笛器的认证 |
FCC, Z-Wave Plus |
| 警报器 |
Y |
| 警笛器电池的类型 |
BL-5C |
| 警笛器电池的电压 |
5 V |
| 警笛器的电池电流 |
1.2 A |
| 报警声音数量 |
6 |
| 警钟分贝 |
110 dB |
照相机
| 摄像头连接方式 |
Wi-Fi |
| 摄像头重量 |
160 g |
| 摄像头运动检测 |
Y |
| 光学传感器尺寸 |
1/4 " |
| 摄像头运行温度范围（T - T） |
0 - 40 °C |
| 摄像头存储存温度范围（T - T） |
-20 - 70 °C |
| 摄像头工作相对湿度 (H-H) |
20 - 80% |
| 摄像头存储存相对湿度范围（H - H） |
20 - 80% |
| 摄像头认证 |
CE, CE LVD, FCC Class B, C-Tick |
| 视角,对角线 |
85.98 ° |
| 安全摄像头 |
Y |
| 摄像头安全算法 |
WEP, WPA, WPA2 |
| 变焦能力 |
Y |
| LED 类型 |
IR |
| 帧速 |
30 fps |
| 夜视 |
Y |
| 焦比(相对光圈) |
2.4 |
| 夜视距离 |
5 m |
| 最小对焦距离 |
434 mm |
| 传感器类型 |
CMOS |
| 摄像头尺寸 （宽 x 深 x 高） |
58 x 84.5 x 124.9 mm |
| 数字变焦 |
4 x |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

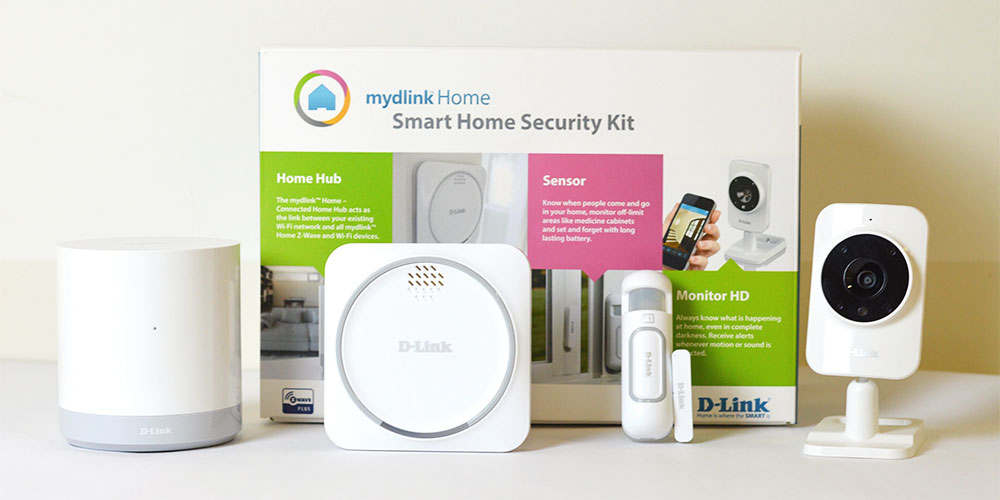

Smart Home Security Kit (connected Home Hub, multi-sensor, siren, camera), white
This convenient security bundle lets you protect and monitor your home from anywhere. The Smart Home Security Kit includes a Connected Home Hub a Door & Window Sensor, a Siren with optional battery back-up1 and a Monitor HD. These devices talk to each other and with the mydlink Home smartphone and tablet app1 you can decide what it is you would like them to do.
Easy to set up
Simply download the mydlink Home app2 and the step by step setup wizard will help you set up all the devices in the kit.
Your mydlinkTM Home
mydlink Home allows you to start with this convenient starter kit and add more when you want to. The unique mydlink Home App1 for iOS and Android smartphone and tablet puts you in control of all your mydlink Home smart devices. You can even setup automation rules to make your home smarter.
Door and Window Sensor
Detect when a door or window is opened or closed as well as monitor room temperature. Know when people come and go in your home or monitor off-limit areas like medicine cabinets. Battery powered with up to 2 years battery life for flexible, wireless placement.
mydlink Home Siren
Alerts you when a linked mydlink Home Sensor is triggered. Equipped with six different sounds and volume up to 110 dB, you can customise your smart home by selecting the appropriate sound effect or alarm whenever a different event occurs.
View From Anywhere with Monitor HD
View securely over the Internet through your smartphone or tablet. Monitor your home in HD 720p. See everything in detail, even when zoomed in. Built-in night vision function allows you to see up to 5 metres even in complete darkness. Alerts you with push notification whenever motion or sound is detected.
Set Up, Monitor and Protect Your Home
The mydlink Home - Connected Home Hub acts as the link between your existing Wi-Fi network and all mydlink home devices.
