性能
| 播放控制器 |
Y |
| 记录时间 |
120 min |
| 视频丢失检测 |
Y |
| Number of motion detection zones |
396 |
| Two-way talk |
Y |
| People counting |
Y |
| 比特率 |
20000 Kbit/s |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 警报器输入通道 |
4 |
| 警报器输出通道 |
2 |
| 吞吐量数据率 |
200 Mbit/s |
| 重放模式 /播放模式 |
Pause, Play, Repeat, Shuffle, Stop |
| 最大分辨率 |
3840 x 2160 pixels |
| 支持的视频格式 |
H.264, H.265 |
| 核心的处理器数量 |
4 |
| 视频运动检测 |
Y |
| PTZ控制（平移/倾斜/缩放） |
Y |
| 支持分辨率 |
3840x2160, 1920x1080, 1280x1024, 1280x720, \n1024x768 |
| 内置处理器 |
Y |
| 速射 |
Y |
| Multi-screen |
Y |
| 支持网络协议 |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP |
| 用户数量 |
128 user(s) |
| 屏幕显示 |
Y |
| 视频输入通道 |
16 channels |
端口 & 界面
| 音频 RCA 输入接口 |
1 |
| 音频 RCA 输出接口 |
1 |
| SATA修订版 |
3.0 |
| 内部SATA端口数量 |
2 |
| USB2.0端口的数量 |
1 |
| 支持以太网（PoE） |
N |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
1 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）输出端口 |
1 |
产品特点
| 机架容量 |
1U |
| 品牌兼容性 |
Universal |
| 认证 |
CE, FCC, UL, EN55032, EN55024, EN50130-4, EN60950-1, Part 15 Subpart B, ANSI C63.4-2014, UL60950-1+CAN/CSA C22.2 No.60950-1 |
| 机架安装 |
Y |
| 兼容性 |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec |
能量控制
| 功耗（一般操作） |
6.9 W |
| 输出电压 |
12 V |
| 输出电流 |
4 A |
重量和尺寸
| 深度 |
281.5 mm |
| 重量 |
1600 g |
| 宽度 |
375 mm |
| 高度 |
56 mm |
| 包装重量 |
3200 g |
存储介质
| 支持的硬盘数量 |
2 |
| 最大存储容量 |
12 TB |
| 硬盘接口 |
Serial ATA III |
环境条件
| 储存温度范围 (T-T) |
-20 - 70 °C |
| 储存相对湿度范围（H - H） |
0 - 90% |
另外
| 产品色彩 |
Black |
| HDMI 输出端口 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
-10 - 55 °C |
Quad-core, 1 x HDMI, 1 x VGA, 3840 x 2160px, 2 x SATA III, 1 x USB 2.0, 1 x USB 3.0, H.265/H.264, 200 Mbps, 1 x RJ-45, 1U, 1.6 kg
System Overview

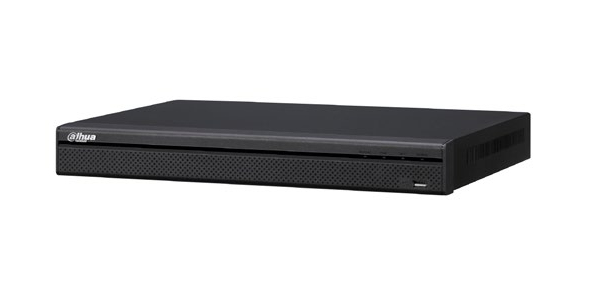

Dahua's NVR4000-4KS2 is the first Lite series NVRs which can support 4K and H.265. And, it has the most reasonable price and best quality. This Lite NVR provides up to 8MP resolution. For applications where details are critical for identification, it provides a powerful image performace with up to 4K resolution. Additionally, the NVR features a mouse shortcut
operation menu, remote management and control, centre storage, edge storage, and back up storage.
Designed as a cost-effective, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with IP cameras.
Functions
4K Resolution
The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live viewing and playback.
Intelligent Video System (Optional)
Working with built-in intelligent video analytics IP cameras, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the
camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Face Detection, for searching or identification of individuals.
Smart Add
With the Smart Add function, the installation of IP system is as easy as an analog system, no matter the NVR with or withou a PoE switch embeded. It should be noted that the NVR has to be in the same router as cameras.
ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.
Easy4ip
You can monitor at anytime and anywhere with Easy4ip. With this function, you can manage your devices more convenient.
