技术细节
压缩机类型 |
Rotary |
制冷瓦量(最大) |
5000 W |
制冷剂 |
R410A |
制热瓦量(最大) |
6000 W |
恒温范围 |
-15 - 46 °C |
类型 |
Air conditioner outdoor unit |
软管长度(最大) |
20 m |
室外单元
室外机尺寸(宽x深x高) |
825 x 300 x 735 mm |
室外机重量 |
48000 g |
室外机数量 |
1 |
噪音水平(室外单元) |
48 dB |
室内单元
冷却空气流(室内单元) |
2934 m³/h |
加热气流(室内单元) |
2586 m³/h |
另外
制冷能源效率 |
3.55 |
制热能源效率 |
3.55, 3.7 |
能源效率等级 |
A |

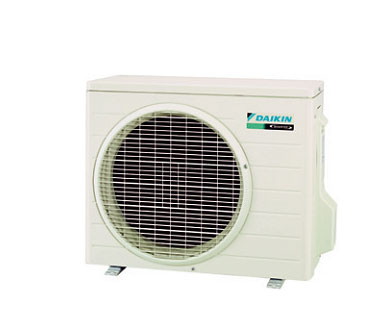

RXS50J - Ext, 48.9/43.1 m3/min, R-410A, 48dB, 48kg, White
- Seasonal efficiency, optimized for all seasons.
- Seasonal efficiency gives an indication on how efficient an air conditioner operates over an entire heating or cooling season.
- The round flow cassette provides a more comfortable environment and offers greater savings in energy consumption to shop, office and restaurant owners
- 360° air discharge ensures uniform air flow and temperature distribution
- Modern style decoration panel is available in 3 different variations: pure white (RAL9010) auto cleaning panel, pure white (RAL9010) standard panel with grey louvers and pure white (RAL9010) standard panel with white louvers
- Air discharge from the corners avoids dead zones that may be subject to temperature differences
- 23 different air flow patterns possible
- Vertical auto swing moves the discharge flaps up and down for efficient air and temperature distribution throughout the room
- Daikin introduces first auto cleaning cassette to European market.
- Higher efficiency and comfort thanks to daily auto cleaning of the filter.
- Easy dust removal with vacuum cleaner without opening the unit.
- Lower maintenance costs thanks to auto cleaning function.
- The presence sensor (optional) : - adjusts the temperature or switches off the unit when there is nobody in the room - ensures the air flow is directed away from any person detected in the room, when the air flow control is activated
- The floor sensor (optional) detects the average floor temperature and ensures even temperature distribution between ceiling and floor. Cold feet will become history.
- Outdoor units for pair application
- Daikin outdoor units are neat, sturdy and can easily be mounted on a roof or terrace or simply placed against an outside wall
- Outdoor unit silent operation: "silent" button on the remote control lowers the operation sound of the outdoor unit by 3dBA to ensure a quiet environment for the neighbourhood.
- Outdoor units are fitted with a swing compressor, renowned for its low noise and high energy efficiency
