其他功能
| 网路功能 |
Ethernet, Fast Ethernet |
| 包含字体 |
HS Draft, Draft, Quadrato, Courier |
| 线密度 |
12 lpi |
| 打印技术 |
Dot Matrix |
纸张处理
| 连续介质重量 |
60 - 120 g/m² |
| 单页介质重量 |
80 - 120 g/m² |
| 纸宽度连续范围 |
76 - 420 mm |
| 纸 |
Push tractor, Pull tractor, Manual |
| 纸长度连续范围 |
76 - 559 mm |
打印速度
| 最大打印速度（草稿） |
413 cps |
| 最高打印速度 |
500 cps |
| 字符密度 |
20 cpi |
| 最大打印速度（LQ） |
77 cps |
打印技术
| 打印方向 |
Bi-direction |
| 打印喷头 |
9-pin |
耐久
| 占空比(最高) |
14000 pages per month |
| 色带寿命 |
4 million characters |
| 打印头寿命 |
300 million characters |
端口 & 界面
| 选择性连接 |
Serial (RS-232), Ethernet |
Dot Matrix Printer, 136 columns, 9-pin printhead, Max. 144 x 240dpi, 64kB Input Buffer, Parallel / Ethernet,Serial (RS-232), 10 cpi: Fastest Draft: 500 cps, Draft: 413 cps, Copy Draft 310 cps, NLQ 77 cps, Printhead Life: 300 million characters, Consumables: 4 million chars (black), Number of Copies: original + 5 copies, 54dB, 11kg
- High quality 9 and 24-pin printhead.
- Narrow (80 columns - T2240) and wide format versions (136 columns - T2340) available.
- Front feed for easy paper loading and reliable paper transport.
- Zero tear, paper park, automatic top of form for easeof use.
- Wide range of emulations for easy connection to awide range of hosts.
- Manual feed: front in, front out; ideal for cheques, statements, registration cards.

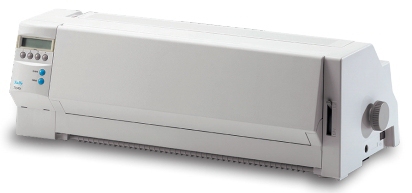

DASCOM's mid range serial matrix printers include the T2240/T2340 series products. Very popular transaction printers, they feature great ergonomics. Forms are easy to load as the paper's installed at the front, not the rear. With automatic top of form and zero tear the printers are easy to set up with no wasted forms.
The products are ideal for back office applications which include retail, local government, hospitals, warehousing and ditribution. They include printing labels, shipping documents and multipart forms. Both 9 and 24 pin models are available for different print quality requirements; narrow and wide format machines offer the choices of small footprint and diverse range of forms. In line with market demands, the new printers are quieter and easier to use than competitive products in their class. All products support graphics and barcodes.
