扫描
| 解码标准 |
-1D + GS1 DataBar,\n-Aztec Code,\n-Aztec Mesas,\n-Data Matrix,\n-MaxiCode,\n-QR Code,\n-OCR-A,\n-OCR-B,\n-British Post,\n-Canadian Post,\n-China Post,\n-Japanese Post,\n-KIX Post,\n-Planet Code,\n-Postnet,\n-Code 49,\n-GS1 DataBar Composites,\n-GS1 DataBar Expanded Stacked,\n-GS1 DataBar Stacked,\n-GS1 DataBar Stacked Omnidirectional,\n-MicroPDF417,\n-PDF417. |
| 倾斜角度的阅读 |
0 - 360 ° |
| 间距阅读角 |
-40 - 40 ° |
| 波长 |
526 nm |
| 偏航阅读角 |
-40 - 40 ° |
| 光学传感器分辨率 |
752 pixels |

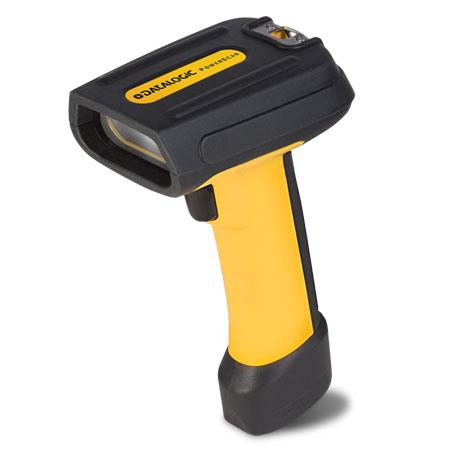

PowerScan 7000 2D, Kit, RS-232, Area Imager, High Density, RS-232 Interface, Yellow/Black (Kit inc. Imager, Power Supply 4004-0798, and RS-232 Cable 8-0736-80)
The PowerScan 7100/7000 product series are Datalogic ADC’s value line of rugged industrial handheld data collection products. The PowerScan 7000 2D linear imaging corded reader is ideal for commercial and industrial applications that need to read mixed symbologies under tough environmental conditions.
The 7000 2D reader supports decoding for standard 1D bar codes, stacked 2D labels such as PDF417, MicroPDF and composites, and matrix 2D labels such as Data Matrix, MaxiCode and QR code, as well as postal codes and OCR fonts. It is also able to capture signatures or images of objects such as shipping damage documentation.
Lightweight, balanced and ergonomic; it allows comfortable handheld use over extended periods of time. Featuring fast omnidirectional scanning and a large depth of field it speeds scanning operations while minimizing motions required to get the scanner in a reading orientation to the labels, whether in a handheld or hands free application.
As with all PowerScan products, the PowerScan 7000 2D reader’s mechanics have been developed and tested to withstand extreme environmental conditions while maintaining consistent reading performance. An over mold covers all of the likely drop contact points on the scanner enclosure adding extra degrees of shock protection so that the reader can withstand 50 drops from 2.0 m / 6.5 ft to concrete without breakage or loss of performance.
Features
- Optics available in Standard Range and High Density
- High resolution VGA Plus image capture for multiple uses, including signature capture
- Decodes 1D, 2D and stacked codes, plus postal codes and OCR fonts
- Bright aiming illumination to ensure fast, reliable scanning in diverse lighting conditions
- Water and particulate sealing rating: IP65
- Drop resistance to 2.0 m / 6.5 ft
