端口 & 界面
| 无线感测范围 |
100 m |
| 操作频率 |
2400 - 2480 MHz |
| 接口 |
USB + RS-232 |
扫描
| 传感器类型 |
Laser |
| 偏航阅读角 |
0 - 40 ° |
| 间距阅读角 |
0 - 40 ° |
| 倾斜角度的阅读 |
0 - 360 ° |
| 波长 |
680 nm |
能量控制
| 电源类型 |
Battery |
| 每次充电读取数 |
30000 |
| 支持的的电池数量 |
1 |
| 电池寿命 |
10 h |
| 充电时间 |
4 h |
性能
| 光照强度（阳光直射） |
0 - 100000 lx |
| 蜂鸣器 |
Y |
另外
| 扫描类型 |
1D/2D |
| 连接方式 |
Wired & Wireless |
| 电池性能 |
2150 mAh |
High Performance/Liquid Lens, RS-232 Kit, Removable Battery (Kit inc. Scanner, Base Station BC9030-BT, Cable CAB-433, Power Brick 8-0935 and Power Cord 6003-0941.)
The PowerScan 9500 family of imagers is targeted to be the most suitable solution for all applications in warehouses, transportation & logistics and manufacturing. The omnidirectional reading capability combined with the snappiness and the depth-of-field features allow the PowerScan 9500 imagers to be faster and therefore, a preferred solution over standard laser scanners.

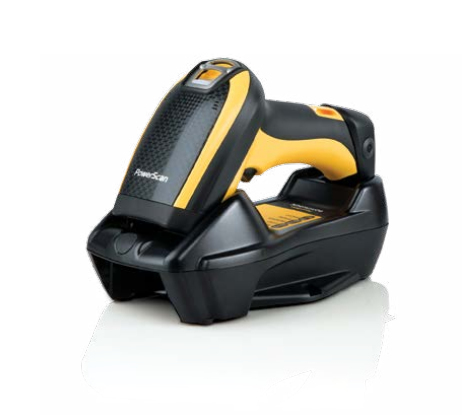

The PowerScan PBT9500 area imager is a mobile scanner based on Bluetooth® wireless technology. It includes all of the scanning features associated with the PowerScan 9500 family and provides the freedom of mobility to move around a warehouse without the entanglement of cables.
The PowerScan PBT9500 imager is equipped with the most advanced optics from Datalogic, including a ‘liquid lens’ which allows the imager to adapt the focus at different distances. The result is a versatile optic that is able to satisfy any scanning need with a single scanner.
A new aiming system consists of a central cross and four dots in the corners. This will clearly identify the captured area and allows intuitive and fast scanning.
As always, the rugged mechanics of the PowerScan brand guarantees reliable, long term operations.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
Features:
- Snappy, omnidirectional reading
- Intuitive aiming system
- Soft white light illumination
- Bluetooth® 3.0 Compliant; Class 1 configurable software
- Datalogic’s Motionix™ motion-sensing technology
- Ergonomic shape
- Image Capture
- Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment
