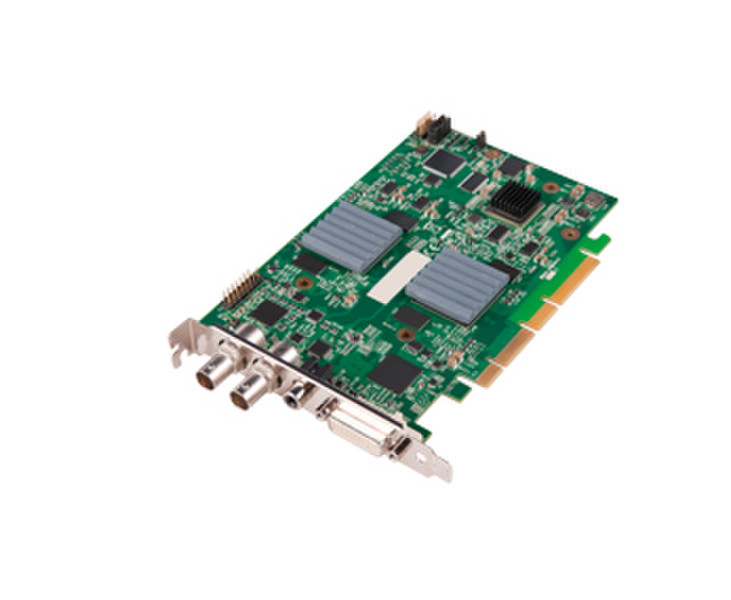

Datapath VisionAV-SDI Internal RCA,DVI-I

Triple channel HD/ SD/ SDI full height capture card, PCI Express x4, DVI-I, RCA, 2 x BNC <b>A capture card with three independent channels of video capture for 3G SDI, DVI and Composite video, with full analog and digital audio support.</b>

The VisionAV-SDI is a four lane PCI Express card with three video capture inputs - two supporting HD capture and a third supporting SD composite video, these three independent video channels can be captured simultaneously. The VisionAV-SDI also adds multiple channels of audio capture, which can be synchronised in software using time stamping with all video capture channels.

This half length full height card features a full mechanical sixteen lane connector with notches which will enable it to fit four, eight and 16 lane motherboard connectors.

The VisionAV-SDI also adds embedded audio capture from the SDI signal, which can be sychronised with the respective video channel. This card provides balanced and unbalanced analog audio capture, through an optional audio module (the Datapath AM2)

This provides a single flexible card solution for areas such as medical, lecture capture, web casting and video conferencing.


- Four lane PCIe lane bus, Net 1.6 GB/s total capture bandwidth
- Triple channel PCI Express capture card
- Channel 1 - a High Definition DVI-I capture channel
- HDMI/ DVI/ TGB/ YPbPr video capture
- HDMI embedded Audio Capture and streaming
- Low input to output capture latency

- Channel 2 - a Standard Definition Composite capture channel:
- PAL, NTSC, SECAM up to 720 x 576 @ 16 Bit colour

- Channel 3 - a SDI capture channel:
- Single channel 3G/ HD/ SD-SDI capture card
- SDI embedded audio capture and streaming
- Loop through SDI BNC connection
- Input status indicator lights

- Direct DMA to graphics memory of third party graphics cards
- All standard features of the Vision range of capture cards
