技术细节
| 水泵电机转速 |
2200 RPM |
| 风扇数量 |
2 fan(s) |
| 散热器 |
Y |
| 风扇 |
Y |
| 处理器插座 |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, LGA 2011-v3 (Socket R), Socket FM2+ |
| 风扇速度（最大） |
2200 RPM |
| 风扇速度（最小） |
600 RPM |
| 噪音水平 |
39.3 dB |
| 风扇连接器 |
4-pin |
| 最大气流 |
182.24 cfm |
重量和尺寸
| 风扇直径 |
120 mm |
| 风扇厚度 |
25 mm |
| 散热器深度 |
27 mm |
| 散热器高度 |
120 mm |
| 散热器宽度 |
274 mm |
能量控制
| 泵电压 |
12 V |
| 风扇电流 |
0.26 A |
| 风扇电压 |
12 V |
| 泵电流 |
160 mA |
2xØ120mm, 600-2200rpm, 17.6-39.3dB, 182.24CFM

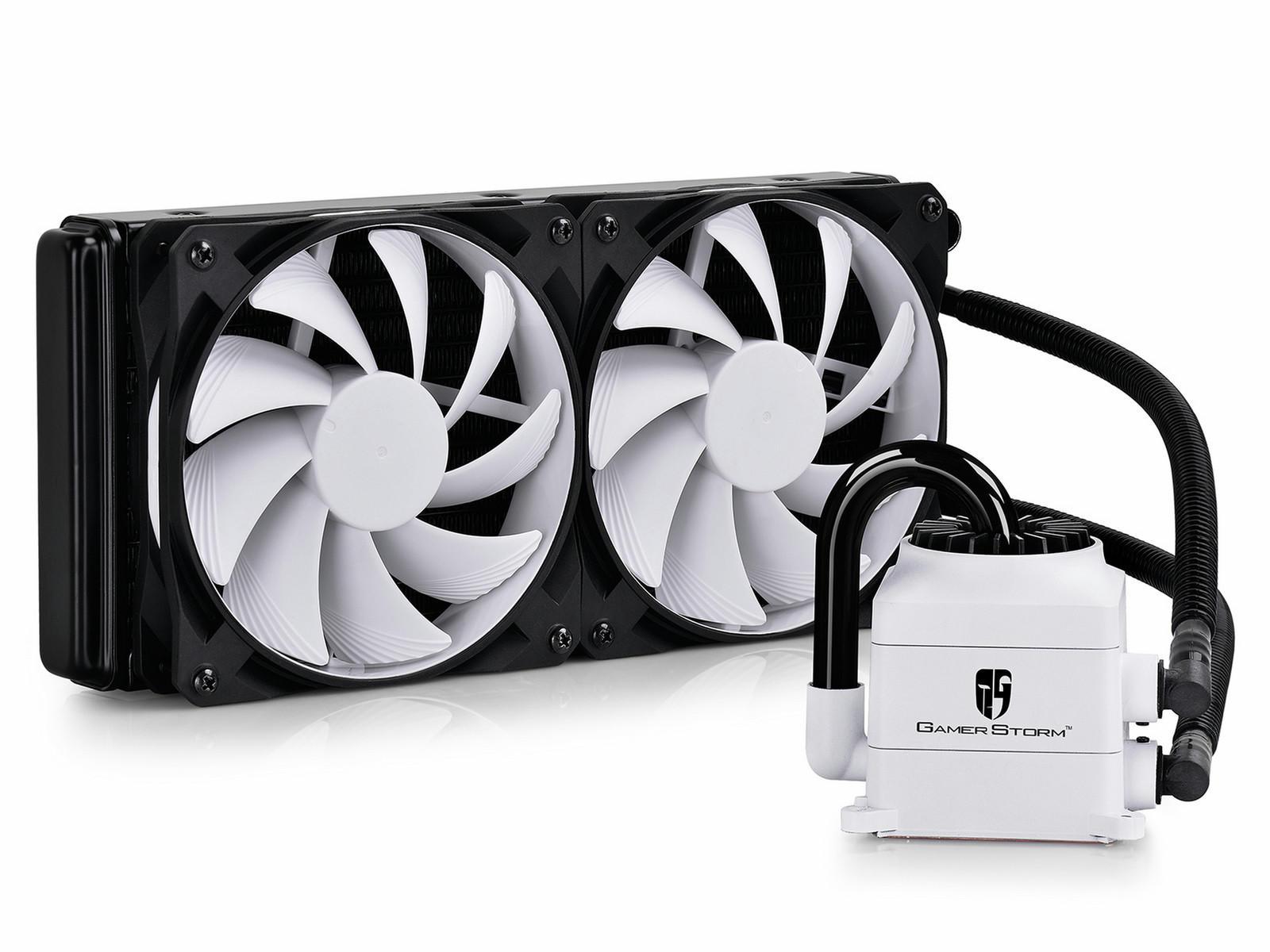

Innovated by DEEPCOOL Steam Castle Design, Captain Series liquid cooler styled with Steam Punk appearance, built with visible liquid flow and LED lightening, offering an awesome sensation not only to your CPU cooling but also your aesthetic demand. Captain Series is sure to be your ultimate choice for computer case with side window.
AIO Liquid Radiator With Original Separated Section Design
Amazing transparent connection system, visual liquid flow design.
Self-governed circulation channel to offer more efficient heat dissipation.
Crazy Steam Punk Appearance
The unique reactor-style pump housing.
Long lifetime ceramic bearing with MTTF 120,000 hours.
High-Density Aluminum Fins
240mm aluminum fins array optimized for a lower fan speed and noise, also the standard mounting holes built-in easy to change new 120mm fan.
Equipped With Multiple Clips To Support
Intel LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150
AMD FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
0.2mm high-density water microchannel
(Skiving Fin technics).
100% pure copper base to offer a highly effective thermal conduct.
Three-phase induction motor built-in the powerful closed impeller.
The stronger liquid flow&bigger delivery head.
Bionic white LED breathing light lightening up while operating.
GF120 rubber-covered PWM fan with de-vibration design, unique FDB bearing owned a lower noise&longer lifetime.
Patented detachable fan impeller easy to clear dust&lubricating oil recruited, DIY top-priority mounting.
Optimized Airflow With Centralized Flow Design.
- AIO liquid radiator with original Separated Section design, self-governed circulation channel to offer more efficient heat dissipation.
- Amazing transparent connection system, visual liquid flow design.
- Crazy steam punk appearance&the unique reactor-style pump housing.
- Three-phase induction motor built-in the powerful closed impeller, the stronger liquid flow&bigger delivery head.
- Long lifetime ceramic bearing with MTTF 120,000 hours.
- 0.2mm high-density water microchannel(Skiving Fin technics), 100% pure copper base.
- 120mm rubber-covered PWM fan with de-vibration design, unique FDB bearing owned a lower noise&longer lifetime.
- Patented detachable fan impeller easy to clear dust&lubricating oil recruited, DIY top-priority mounting.
- Bionic white LED breathing light lightening up while operating.
