性能
| NVIDIA® GameWorks VR 平台 |
N |
| NVIDIA® G-SYNC 技术配置 |
N |
| 最高着色模型版本 |
5.0 |
| HDCP |
Y |
| 集成电视调谐器 |
N |
| PhysX |
N |
| NVIDIA 3D Vision |
Y |
| DirectX版本 |
11.2 |
| OpenGL版本 |
4.4 |
内存参数
| 内存带宽（最大） |
80 GB/s |
| 独立显卡适配器內存 |
4 GB |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
128 bit |
端口 & 界面
| 接口类型 |
PCI Express x16 |
| DisplayPort 数量 |
2 |
| DVI-I接口数量 |
1 |
处理器
| 图形处理器系列 |
NVIDIA |
| 最大模拟分辨率 |
2048 x 1536 pixels |
| FireStream |
N |
| 视频卡最大显示 |
4 |
| 最大数字分辨率 |
3840 x 2160 pixels |
| CUDA |
Y |
另外
| 双dvi（互应式数字视频） |
Y |
| 图形处理器 |
Quadro K2200 |

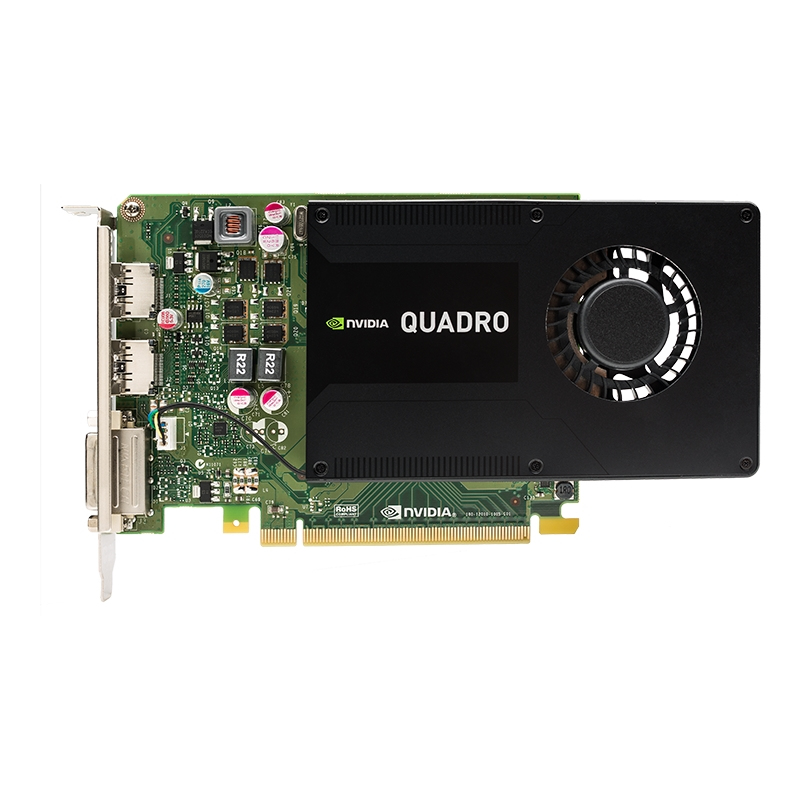

NVIDIA Quadro K2200, 4GB, GDDR5, 128-bit, PCI Express 2.0 x16
<b>Accelerate your creativity with NVIDIA® Quadro®—the world’s most powerful workstation graphics.</b>
The NVIDIA Quadro K2200 delivers exceptional power-efficient 3D application performance. 4 GB of GDDR5 GPU memory with fast bandwidth enables you to create large, complex models, and a flexible single-slot form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions up to 3840x2160 @ 60 Hz with 30-bit color.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists, giving you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
