内存参数
| 图形适配器内存类型 |
GDDR5 |
| 内存带宽（最大） |
96 GB/s |
| 数据宽度 |
128 bit |
| 独立显卡适配器內存 |
4 GB |
性能
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.4 |
| 最高着色模型版本 |
5.0 |
| PhysX |
N |
| 集成电视调谐器 |
N |
处理器
| 图形处理器系列 |
AMD |
| 流处理器 |
768 |
| 峰值浮点性能（单精度） |
1.43 Gflops |
| 峰值浮点性能（双精度） |
89.2 Gflops |
端口 & 界面
| 接口类型 |
PCI Express x16 3.0 |
| DisplayPort 数量 |
4 |

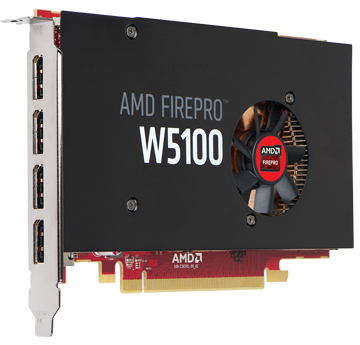

AMD FirePro W5100, 4GB GDDR5, DirectX 11.2/12, OpenGL 4.43, Shader Model 5.0
Application Certifications
The AMD FirePro™ professional graphics product family is certified on more than 100 different applications for improved performance and reliability, including the most popular design and engineering and media and entertainment applications.
4GB GDDR5 Memory
Helps to improve overall workstation speed and responsiveness, and application performance. Load large assemblies, models and data sets, or advanced visual effects, and manipulate them with ease.
DirectGMA (Direct Graphics Memory Access) Support
DirectGMA bypasses any need to traverse the host’s main memory, reducing CPU utilization, and avoids redundant transfers over the PCIe® interface, resulting in high throughput, low latency data transfers.
GeometryBoost
Allows the GPU to process geometry data at a rate of twice per clock cycle resulting in a doubling in the rate of primitive and vertex processing. Triangle rates increase two-fold relative to a GPU that does not possess GeometryBoost.
AMD Eyefinity Technology
A multidisplay technology enabling highly immersive and powerful multitasking experience across up to four displays, powered by a single AMD FirePro™ W5100 graphics card1.
OpenCL™ 2.0 Support
Tap into the parallel computing power of modern GPUs and multicore CPUs to accelerate compute-intensive tasks in leading CAD/CAM/CAE and media and entertainment applications that support OpenCL. AMD FirePro™ W5100 supports OpenCL 1.2 and is expected to support OpenCL 2.02, allowing developers to take advantage of new features that give GPUs more freedom to do the work they are designed to do.
1.43 TFLOPS of peak single-precision floating-point performance
Helps speed up time required to complete single precision operations used within Video Enhancement, Signal Processing, Video Transcoding and Digital Rendering applications.
