技术细节
| 等待时间 |
5 |
| MAC 地址表 |
256000 entries |
| 支持的协议 |
IPv4, IPv6, UDP, TCP, FTP, MD5, TFTP, Telnet, ICMP, ARP, DNS, NTPv3, CIDR, BOOTP, DHCP, VRRP, MTU, ICMPv6, RIPv1, RIPv2, NSSA, OSPFv2, LSA, OSPFv3, IGMPv1, IGMPv2, IGMPv3, SMIv1, SNMPv1, SNMPv2, SNMPv3, RMON, DLSw |
| 插槽数量 |
4 |
| 交换容量 |
768 Gbit/s |

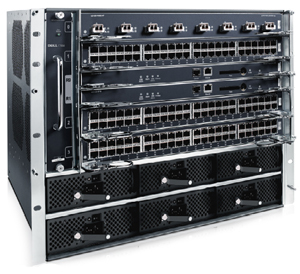

9U, 768 Gbps (476 Mpps), 4 x slots
<b>Maximize throughput and flexibility</b>
Build a resilient network infrastructure that offers flexibility, expansion and broad customization with Dell Networking C-Series chassis-based switches.
<b>Dell Networking C-Series</b>
High-density, line-rate, non-blocking 1/10/40GbE switches, cost-effective PoE+ enabled GbE ports, modular Dell Networking OS software for inherent stability, and in-service diagnostics and traffic visibility tools for increased network control.
<b>C-Series resilient switches</b>
The Dell C-Series resilient chassis-based switches deliver reliability, network control and scalability. The C-series is designed to support GbE and 10GbE switch aggregation for enterprise campus and business wiring closets, while also supporting 1/10GbE server aggregation and 10/40GbE core operations/campus connections for data centers. Comprehensive management capabilities make the C-Series a cost-effective and flexible deployment option.
<b>Key applications:</b>
- High-density 1/10GbE aggregation into a multiple Gbps or 40GbE backbone;
- Cost-effective, scalable PoE+ IEEE wiring closet aggregation of VoIP phones, wireless access points or other IEEE 802.3at-compliant devices;
- Low-cost 100/1000Mbps server aggregation for small-to medium-sized data centers (100s to 1,000s of servers);
- Scalable GbE aggregation and 10GbE transport in a carrier’s Middle Mile network to enable the deployment of triple play services.
<b>Key features:</b>
The Dell C-Series is designed to provide inherent reliability, network control and scalability for high-performance Ethernet environments.
- Virtual Link Trunking (VLT) feature provides up to 100% better link performance and improved resiliency for layer 2 networks;
- Up to 24x 40GbE ports (9RU chassis) or 48x 40GbE ports total (13RU chassis);
- Up to 320 line-rate 10/100/1000Base-T ports with full 30W Class 4 PoE+ support in a 13RU chassis;
- Up to 64 line-rate, non-blocking 10GBase-T ports or 128x 10GBase-T ports in a 13RU chassis;
- Full complement of standards-based Layer 2, IPv4 and IPv6 features for unicast and multicast applications;
- Can be deployed as either an L2 or L3 access switch with extended capabilities, including PVST+, PBR, OSPF, ECMP and BGP;
- Switch fabric capacity of up to 1.536Tbps and up to 952Mpps L2/L3 packet forwarding capacity.
- High availability architecture: 1+1 route processor module design; Continuous runtime data plane monitoring and advanced in-service CLI diagnostic functions; Power supply redundancy with load sharing power bus enabling critical operations and uninterrupted VoIP calls during one or multiple power supply failures.
- Suite of security, access control and wiring closet edge features for enterprise networks;
- Intelligent power management features provide automatic sensing, provisioning and management of PoE power.
