显示器
显示器尺寸 |
21.5 " |
垂直扫描范围 |
56 - 76 Hz |
可视尺寸,对角线 |
546 mm |
长宽比 |
16:9 |
触摸屏技术 |
Capacitive |
对比度(动态) |
8000000:1 |
响应时间 |
25 ms |
色域 |
84% |
对比度 |
3000:1 |
显示器分辨率 |
1920 x 1080 pixels |
视角,水平 |
178 ° |
视角,垂直 |
178 ° |
像素 |
0.248 x 0.248 mm |
显示器可视区域 HxV |
476.64 x 268.11 mm |
显示器亮度 |
250 cd/m² |
Full HD |
Y |
显示技术 |
VA |
支持图形分辨率 |
1920 x 1080 (HD 1080) |
支持的视频模式 |
1080p |
LED背光源 |
Y |
端口 & 界面
包含电缆 |
AC, HDMI, USB |
DVI-D接口数量 |
1 |
音频输出 |
1 |
USB2.0端口的数量 |
1 |
HDMI端口数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
人体工程学
支持装配位置 |
Horizontal |
VESA 安装支架 |
Y |
线缆锁插槽 |
Y |
VESA 安装系统兼容界面 |
100 x 100 mm |
墙壁支架 |
Y |
倾角 |
0 - 60 ° |
性能
DDC/CI |
Y |
屏保功能 |
Y |
内置麦克风 |
N |
同步接触点的数目 |
10 |
即插即用 |
Y |
HDCP |
Y |
OSD语言数 |
6 |
触控技术 |
Multi-touch |
内置摄像头 |
N |
可支持的Windows操作系统 |
Windows 8 |
戴尔 E-Value 代码 |
S2240T |
屏幕显示 (OSD)语言 |
CZE, DEU, ENG, ESP, FRE, JPN |
重量和尺寸
重量(含底座) |
5800 g |
深度 |
205.7 mm |
重量 |
3400 g |
宽度 |
522.5 mm |
高度 |
370.8 mm |
能量控制
功耗(一般操作) |
20 W |
功耗(待机) |
0.5 W |
交流电(AC)输入电压 |
100-240 V |
交流电(AC)输入频率 |
50/60 Hz |
能源之星认证 |
Y |
电源类型 |
AC |
另外
水平扫描范围 |
30 - 83 kHz |
显示器的颜色数量 |
16.78 million colours |
产品色彩 |
Black, Silver |
显示器对角线(公制) |
54.6 cm |
运行温度范围(T - T) |
0 - 40 °C |

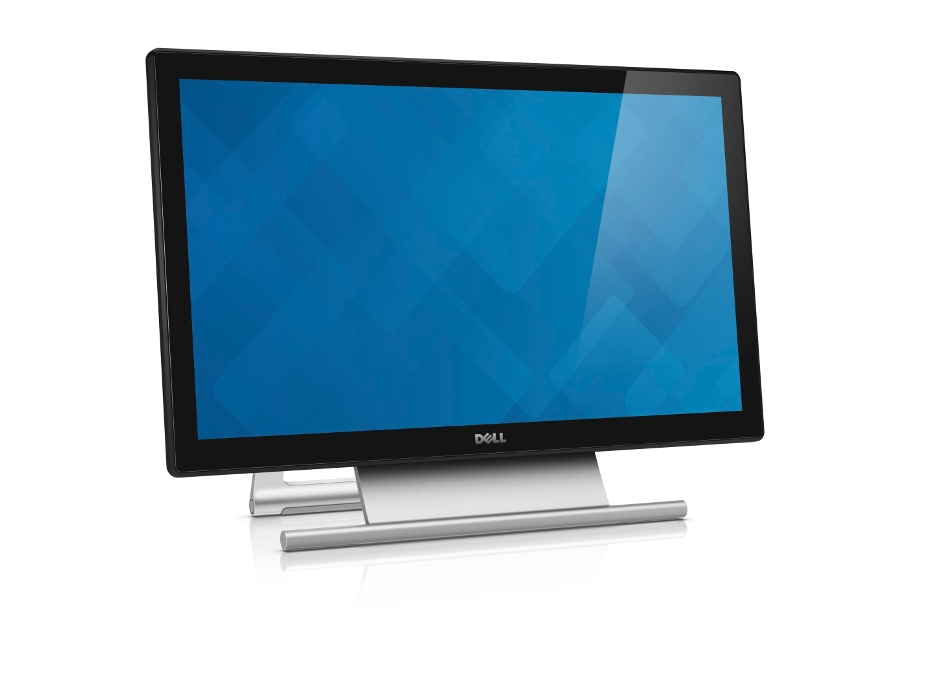

54.61 cm (21.5 ") (54.6cm) LED, 1920x1080, 16:9, 250cd/m², 12ms, 16.7M, HDMI, VGA, DVI-D, USB 2.0, 20W, 3.4kg
Exceptional usability
Designed to encourage collaboration and give productivity a boost, the Dell 21.5" touch monitor offers a high level of user flexibility for work, school or entertainment.
- Ergonomic stand: Slide your display toward you smoothly and naturally to touch and type while tilting as much as 60°. Good for classrooms, home offices, clinics and other professional applications.
- VESA compatibility: You can also choose to mount your monitor on the wall or attach it to the Dell Single Monitor Arm1 to enjoy even greater viewing flexibility.
- Integrated connectivity: HDMI, Digital Visual Interface (DVI) and VGA ports enable direct connections to your desktop, laptop, camera, phone and other electronic devices to enhance almost any view.
- Image projection: Enabling touch is easy! Simply connect the USB cable from your PC to the monitor's USB upstream port, and use either a HDMI, DVI2 or VGA2 cable to project images onscreen.
Natural touch and superb image clarity
Tap, slide, swipe, turn, pinch and stretch with your fingers. The multi-touch capability is simple and intuitive when used with Windows 8, recognizing up to 10 touch points at once.
Offering excellent image quality, the Dell 21.5" touch monitor features:
- Great screen clarity: 16:9 Full HD with 1920 x 1080 (max) resolution; 3,000:1 (typical) high contrast ratio; Mega Dynamic contrast ratio estimated at 8 million:1 (max); wide 178°/178° viewing angle for effective collaboration.
- Edge-to-edge glass: Big, clean panel for a smooth touch experience plus Image Enhance designed to sharpen images, improve color hues and boost color contrast.
- Dell Display Manager: Features Auto Mode, which offers a choice of preconfigured color settings to optimize the appearance of individual applications. Each application can have its own preset mode.
Efficient design
Conceived with a high priority on environmental efficiency, the Dell 21.5" touch monitor features low power consumption and environment-conscious materials.
- 20W typical power consumption: Energy use is up to 28.57 percent lower than the previous-generation Dell touch monitor.
- Power-saving features: Dynamic dimming lowers brightness of predominantly white screens. PowerNap, when enabled, dims the monitor when not in use.
- High environmental standards: ENERGY STAR® qualified and EPEAT® Silver rated, the Dell 21.5" touch monitor also features arsenic-free glass and a mercury-free LED panel.
