性能
| 波形 |
Sine |
| 液晶显示器指示灯 |
Y |
| 发声警报器 |
Y |
| UPS 拓扑 |
Double-conversion (Online) |
设计
| 机架容量 |
3U |
| 格式要素 |
Rackmount/Tower |
能量控制
| 输入工作电压（最大值） |
280 V |
| 输入工作电压（最小值） |
160 V |
| 效率 |
92% |
| 紧急电源关闭(EPO) |
Y |
| 电源输入频率 |
50/60 Hz |
| 能量波动功率 |
480 J |
| 输出功率（瓦特－安培） |
3000 VA |
| 波峰因数 |
3:1 |
| 输出工作电压（最小值） |
220 V |
| 输出工作电压（最大值） |
240 V |
| 输出功率 |
2100 W |
端口 & 界面
| 交流电（AC）插座类型 |
C13 coupler, C14 coupler |
| 电缆长度 |
2.44 m |
| 电源插头 |
C20 coupler |
| 输出IEC跳 线数量 |
2 |
| 交流电（AC）插座数量 |
10 AC outlet(s) |
电池
| 电池技术 |
Sealed Lead Acid (VRLA) |
| 电池充电时间 |
2.5 h |
| 电池更换报警 |
Audible |
| 支持的的电池数量 |
1 |
环境条件
| 运行湿度范围(H-H) |
0 - 95% |
| 储存温度范围 (T-T) |
-15 - 45 °C |
| 非运行高度 |
0 - 15000 m |
| 工作高度 |
0 - 3000 m |
重量和尺寸
| 深度 |
660 mm |
| 重量 |
54550 g |
| 宽度 |
432 mm |
| 高度 |
130 mm |
| 包装盒厚度 |
980 mm |
| 包装重量 |
63640 g |
| 包装盒宽度 |
603 mm |
| 包装盒高度 |
347 mm |
认证标准
| RoHS符合性 |
Y |
| 认证 |
BSMI, C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, JEON, OSHPD, UL 1778, VDE, VCCI |
另外
| 产品色彩 |
Black |
| RS-232接口 |
1 |
| Schuko (欧规)插座数目 |
2 |
| 运行温度范围（T - T） |
0 - 40 °C |

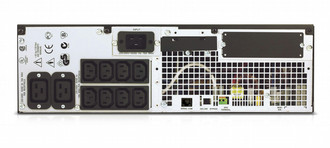

3U, 2100W / 3000 VA, 230V, 50/60 Hz, 8 x C13, 2 x C19, 2 x IEC Jumpers, 1 x C20, 1 x Serial. 1 x SmartSlot, 54.55 kg
Clean, reliable and efficient
Ensure dependable, efficient IT performance with uninterruptable power supplies (UPS) from Dell. You can address a wide range of power needs — from providing essential protection for servers, storage and networks to meeting the most demanding power requirements — with Dell online UPS models, which incorporate APC™ designs by Schneider Electric™.

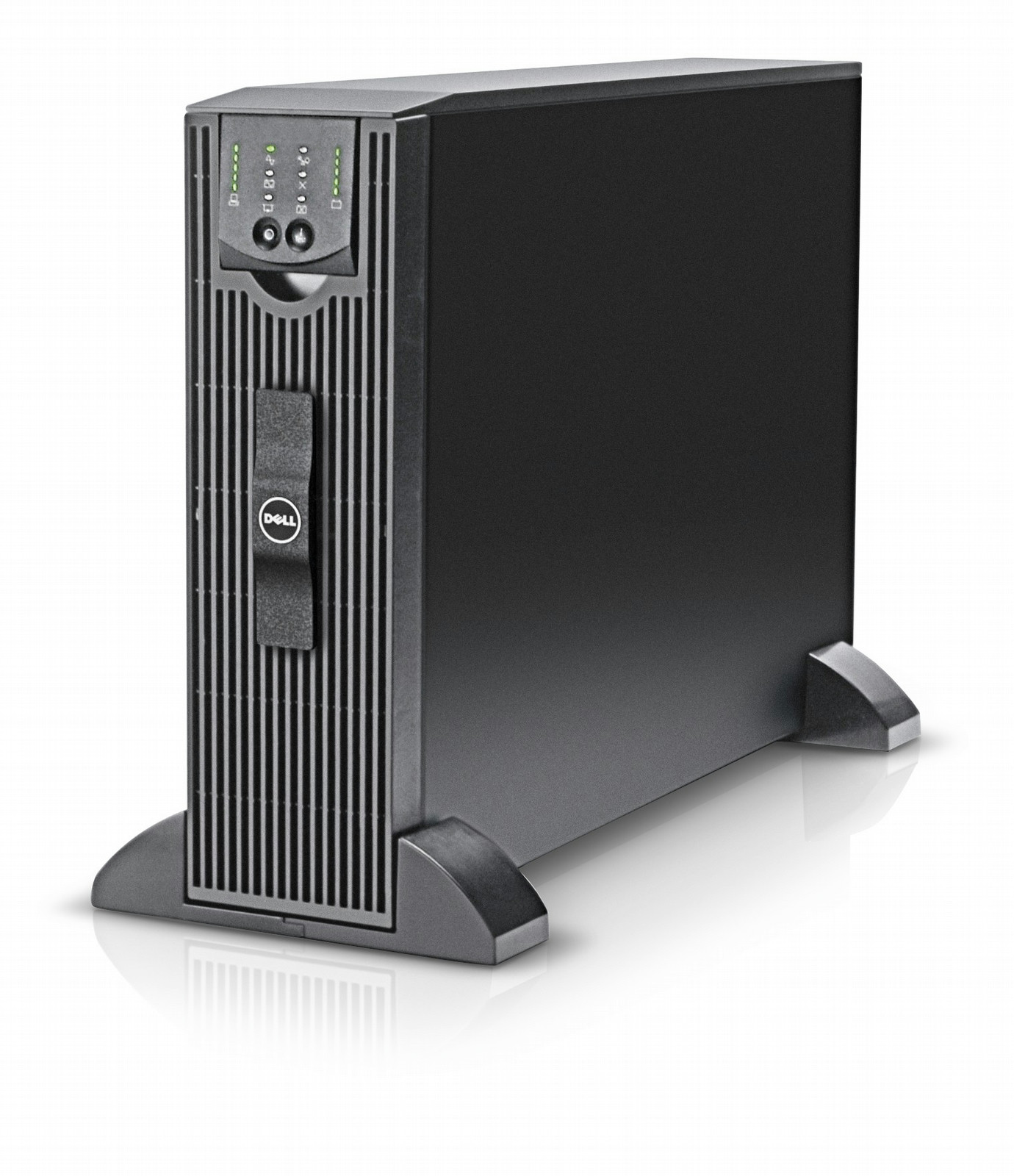

Dell Smart-UPS Online
Provide high-density, double-conversion, online power protection for mission-critical servers, voice/data networks, medical labs and light industrial applications. Support loads from 3kVA through 8kVA in rack and tower convertible chassis models. The 8kVA offers unity output power factor.
Key features:
- Remote management
- Hot-swappable, user-replaceable batteries
- Double conversion online
- Built-in automatic and manual bypass
- Field-replaceable power distribution panels
- Scalable runtime
- Three year warranty on electronics and battery
Second generation online UPS (5kVA and 8kVA) features:
- Increased power density
- High-efficiency Green Mode
- Graphical LCD with multicolor backlight
- Intelligent battery management
- Built-in energy meter
Product features
LCD screen available on 5kVA and 8kVA models: Accurately provides real-time status with your choice of basic or advanced menus
UPS status:
- Output and input voltage
- Output frequency
- Runtime
- Load
- Battery health
Control:
- UPS and outlet group settings
- Bypass control
Configuration:
- Output voltage, frequency
- Language, brightness, contrast
- Alarm volume
- IP address
Test and Diagnostics: Initiate battery and runtime calibration tests
About menu:
- UPS serial number, battery part number
- Battery install and suggested replacement dates
Grow with our portfolio
In addition to Dell Smart-UPS products, the Dell Data Center Infrastructure (DCI) portfolio offers multiple support options, rack enclosures and both KVM (keyboard, video, mouse) and KMM (keyboard, monitor, mouse) products. Whether you support a single server or an entire data center, Dell has your infrastructure needs covered.
