内容包装
| 包含电缆 |
DisplayPort |
| 用户手册 |
Y |
| 包括驱动器 |
Y |
| 安装支架 |
Y |
系统要求
| 可支持的Linux操作系统 |
Y |
| 可支持的Windows操作系统 |
Y |
端口 & 界面
| PCIe版本 |
3.0 |
| 內置式 |
Y |
| 主机接口 |
PCIe |
| 输出接口 |
DisplayPort, USB 3.1 |
性能
| 数据传输率(最大) |
10 Gbit/s |
| 芯片组 |
Asmedia ASM1142 |

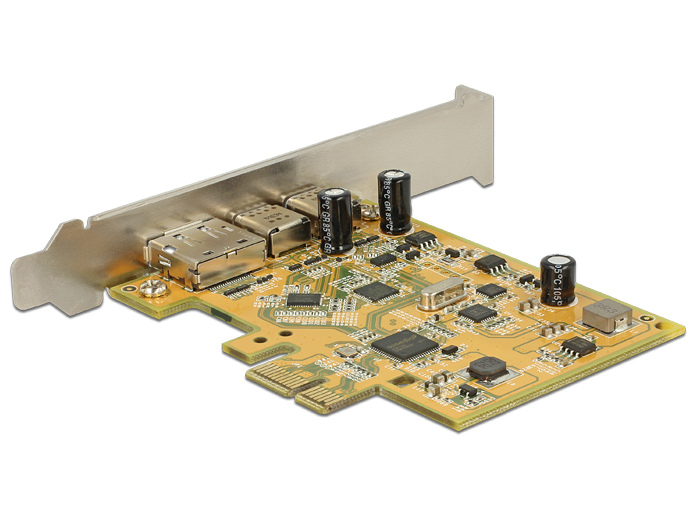

PCI Express Card > 1 x external USB Type-C 3.1 female + 1 x external USB Type-C 3.1 (DP Alt Mode) female
This PCI Express card by Delock expands the PC by two external USB-C™ ports. Different USB-C™ devices, such as docking stations, card readers, external housings etc., can be connected to the card. By using the included cable, the Displayport connector of the PCI Express card can be connected to a Displayport output of a graphics card on the motherboard. Therefore one USB-C™ port will be DP Alt Mode capable. A monitor can be connected to this port in order to transmit video and audio signals.
