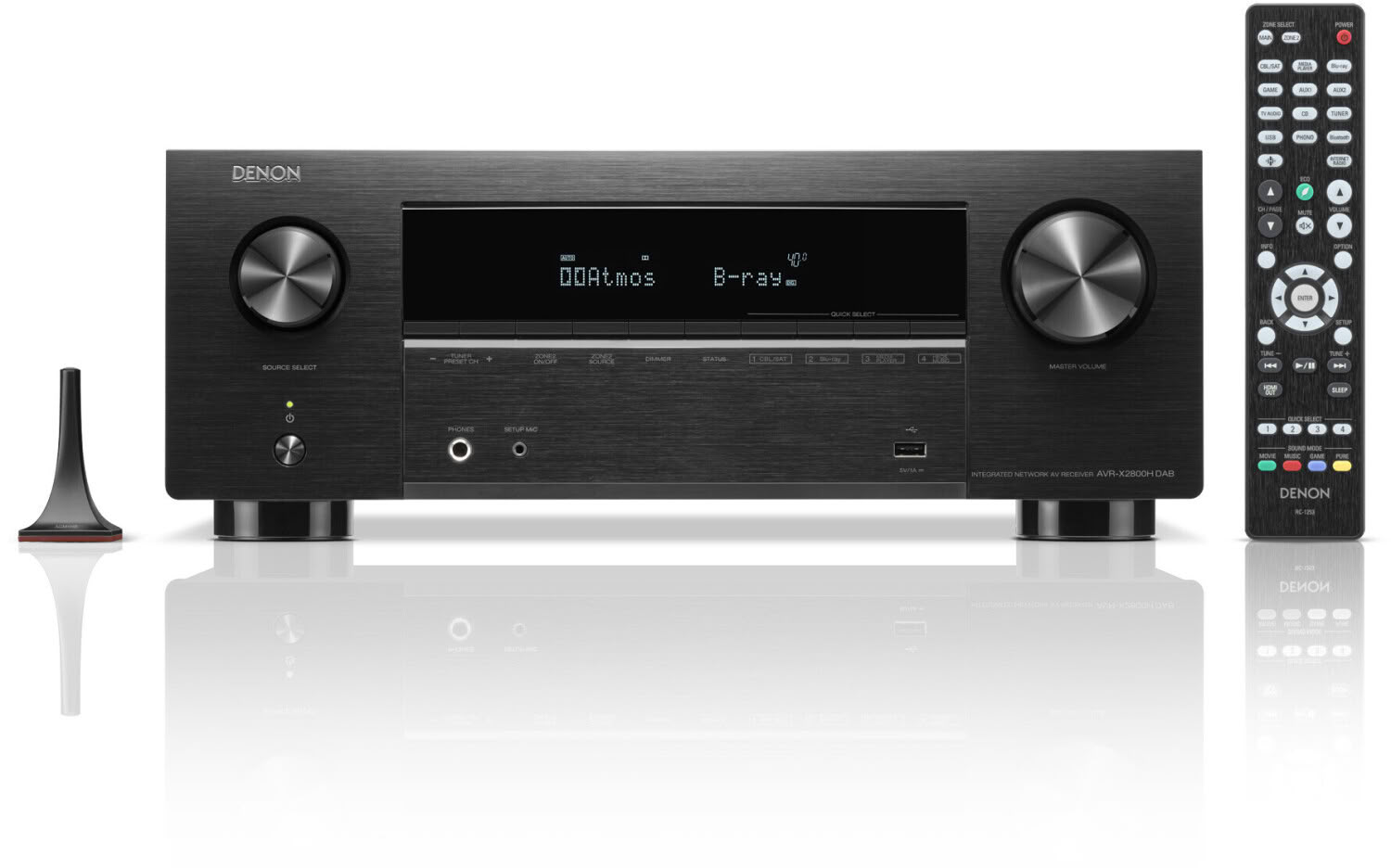

Product type: Audio/Video Receiver
Series: Denon AV Receiver
Speaker configuration: 7.2
Output power per channel: 150 Watt
Technical specifications
Output power: 1.050 Watt
Output impedances: 4 Ohm, 6 Ohm, 8 Ohm
Speaker connection: Screw terminals
HDMI version: HDMI 2.1
Connections
Analog audio inputs: 4x Line Inputs (RCA, Stereo), 1x MM/MC Phono Input (RCA, Stereo)
analog audio output: Zone 2 (LINE Out, Cinch/RCA, Stereo)
digital audio inputs: 2x S/PDIF IN (TOS-Link optical)
HDMI ports: 6x HDMI inputs, 2x HDMI outputs, HDMI-ARC, HDMI-eARC
Preamp outputs: 2x Subwoofer (Cinch/RCA)
Front Connections: Headphone output, 1x Measurement microphone (Setup Mic), 1x USB 2.0 Type-A
Data connections: 1x Network (Ethernet), 1x USB 2.0
additional connection: Antenna connection
gold-plated connections: yes
Audio
Audio functions: Audyssey Dynamic EQ, Audyssey Dynamic Volume
Dolby Formats: Dolby Atmos, Dolby TrueHD, Dolby Surround
DTS Formats: DTS Virtual:X, DTS:X, DTS Neural:X, DTS HD
Video
Supported Resolutions: 1080p, 4K (2160p), 8K (4320p)
Video Functions: 4K Pass-Through, 8K Pass-Through, BT.2020 support, HDCP 2.3, HDMI Standby Through, Deep Color, x.v.Color, Dolby Vision, HDR10+
Connectivity
Network functions: Audio Streaming, Network Streaming
Wireless transmissions: HEOS, AirPlay 2, Bluetooth, Wi-Fi, Spotify Connect, Roon Ready
Streaming Services: TuneIn, Internet Radio, Spotify, Tidal, Sirius XM, Pandora, Deezer
USB Interface: yes
HDMI-CEC: yes
Functions
automatic measurement: yes
Calibration System: Audyssey MultEQ XT
LipSync: yes
with remote control: yes
Reception areas: DAB, DAB+
Smart Home
Voice assistant: Amazon Alexa
Additional features
Color: black
