性能
| 无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11a |
| 电源插头 |
Type F |
| 以太网的数据传输率 |
1000, 100, 10 Mbit/s |
| 阻尼滤波器 |
2 - 68 MHz |
| 滤波特性 |
-22 - -45 dB |
| 以太网LAN接口类型 |
Gigabit Ethernet |
| Wi-Fi标准 |
IEEE 802.11ac |
| 最高操作距离 |
400 m |
| 调制 |
64-QAM, 256-QAM, OFDM, 4096-QAM, DPSK, 1024-QAM, QPSK |
| 无线局域网连接 |
Y |
另外
| 以太网连接器 |
Y |
| 数据传输率（最大） |
1200 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
2 |

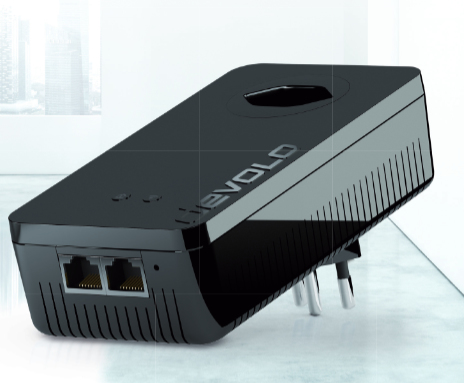

Power line with dLAN PLC and Wi-Fi, 2 x Gigabit Ethernet, Auto MDI/X, 196-250VAC, Black
devolo offers the dLAN® pro 1200+ WiFi ac for commercial networking solutions over the power line. In addition to a maximum data transmission speed of up to 1,200 Mbps over the power line, the professional adapter has an integrated Wi-Fi access point (IEEE 802.11 a/b/g/n/ac). Maximum security is guaranteed through 128-bit encryption (AES), WPA2-Enterprise, RADIUS server support, multi-SSID (up to 14 simultaneously) and VLAN. The professional administration software (dLAN® AVpro manager) provides support during installation, configuration and monitoring. Simple P2P through to more complex master-slave environments can be displayed with the professional adapter together with remote management, live view, configuration profiles, rights administration and much more.
- 2 x Gigabit LAN ports with Auto MDI-X function for connecting any number of network devices via patch cables
- Integrated WiFi access point with high data throughput and full downwards compatibility (IEEE 802.11 a/b/g/n/ac)
- Up to 1,166 Mbps per Wi-Fi thanks to 2 x 2 MiMo technology
- Support for 2.4 and 5 GHz Wi-Fi simultaneously
- Multi-SSID with 14 separated wireless networks simultaneously, separated by VLAN, service or applications
- Separated virtual networks, isolated VLANs for guests, employees, services, etc.
- Maximum security : 128-bit encryption (AES), WPA2-Enterprise, RADIUS server support
- LEDs, keys and network ports can be disconnected via software
- Coupling of two networks possible via Wi-Fi (bridging) and the wireless access point operating mode (client mode)
- Display of master-slave network architectures, including P2P isolation
- range+ Technology from devolo: significantly better transmission thanks to optimised and patented signal coupling on the power line. In addition to the phase and neutral wires, range+ Technology also uses the earth wire for the best possible data rates and range
- Thanks to the integrated electrical socket, the power outlet (230 V / 16 A) remains available
- Long range of up to 400 metres in buildings
- Short installation times and cost-efficient integration (without routing cables or drilling through walls)
- Professional network management software (dLAN® AVpro manager) for supporting the administrator during configuration and monitoring
- Global remote access allows secure, web-based monitoring and configuration of all parameters remotely
- Status monitoring of the connected devices via integrated live view (transfer rates, data packets)
- Configuration of entire device groups via profiles in the dLAN® AVpro Manager
- Real-time monitoring of all dLAN® professional network adapters
- Intuitive administration interface with beginner and expert mode
- Through automatic phase shift, dLAN® is available throughout the building - even without phase couplers
- 3-year warranty, including business hotline and immediate replacement
- Engineered in Germany
