性能
VLAN支持 |
Y |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
无线局域网数据传输率 |
1750 Mbit/s |
2.4 GHz |
Y |
5 GHz |
Y |
网络标准 |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at |
重启按钮 |
Y |
网上管理 |
Y |
频段 |
2412 - 2484, 5150 - 5250, 5250 - 5350, 5470 - 5725 GHz |
系统日志 |
Y |
设计
外壳材料 |
Aluminium |
放置 |
Wall |
內置式 |
N |
液晶显示器指示灯 |
LAN, Power, WLAN |
国际保护(IP)代码 |
IP67 |
能量控制
功耗(一般操作) |
22 W |
支持以太网(PoE) |
Y |
安全
支持安全算法 |
802.1x RADIUS, SNMP, SNMPv3, WPA, WPA-AES, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-TKIP |
支持 SSID 数量 |
16 |
MAC(媒体存储控制)地址过滤 |
Y |
天线
天线类型 |
External |
天线数量 |
6 |
可拆式天线(S) |
Y |
重量和尺寸
深度 |
256.7 mm |
重量 |
2980 g |
宽度 |
226.7 mm |
高度 |
90.3 mm |
环境条件
储存温度范围 (T-T) |
-40 - 80 °C |
运行湿度范围(H-H) |
0 - 90% |
储存相对湿度范围(H - H) |
0 - 95% |
另外
产品色彩 |
White |
数据传输率(最大) |
1750 Mbit/s |
以太网路(RJ-45)连接接口数量 |
1 |
运行温度范围(T - T) |
-40 - 70 °C |
2.4-5 GHz, 1750 Mbps, 6 external antennas, up to 16 SSIDs, PoE in, IP67, 2.98kg + 36 Credits

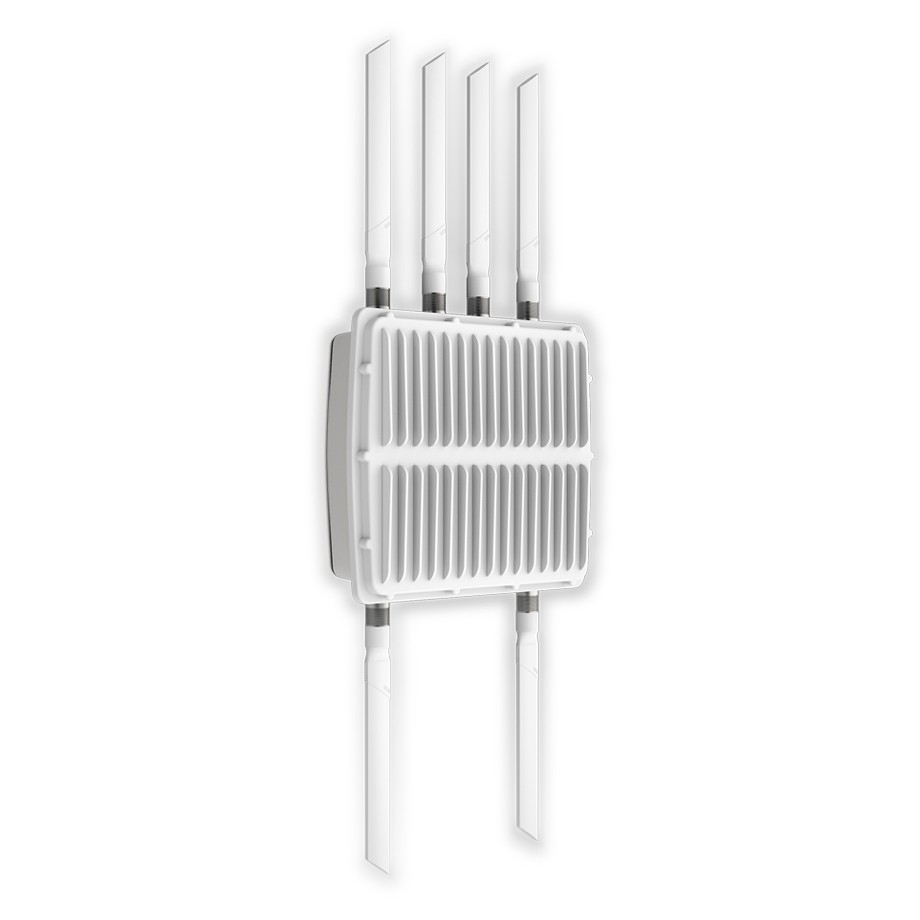

devolo WiFi pro 1750x
The new WiFi pro series from devolo Business Solutions features six high-performance access points that are specially designed for professional use. This premium WiFi solution, which boasts the fastest wireless standard,IEEE 802.11ac, achieves data rates up to 1750 Mbps and reliably supplies both 2.4 GHz and 5 GHz devices (simultaneous dual-band). This makes these products ideal for environments with a large number of mobile users and a high volume of data traffic. Additional devices can easily be connected and supplied with power via additional Gigabit Ethernet ports with PoE support. IEEE 802.1x and up to 16 SSIDs ensure maximum network security. In addition, professional delos firmware provides administrators with numerous installation, set-up and monitoring options. This makes configuration of VLAN, dynamic VLAN and legacy rate sets and viewing Syslog entries very easy. Thanks to this combination of professional functions and a high level of user-friendliness, the access points cover a wide range of application areas. devolo WiFi pro access points always offer the fastest WiFi speeds, optimum flexibility and maximum security in companies, hospitals, schools and hotels.
- Professional simultaneous dual-band access point, specially designed for outdoor areas in commercial environments
- Ideal for use in rough environments: campsites, golf courses, gardens, etc.
- Water-proof IP67 housing made of die-cast aluminium—resistant to corrosion, salt, mist and rust
- The fastest WiFi at speeds up to 1750 Mbps (3 × 3 IEEE 802.11ac & 3 × 3 IEEE 802.11n)
- Concurrent 2.4 and 5 GHz support
- Improved wireless coverage and range thanks to 3×3 MIMO technology
- Easy installation and secure fastening to poles or posts thanks to a provided mounting kit
- Gigabit Ethernet port for a direct high speed connection
- Operation via PoE (Power over Ethernet) possible in accordance with IEEE 802.3at
- Supports up to 16 SSIDs (8 × 2.4 GHz and 8 × 5 GHz)—ideal for multiple departments, user groups, customers or guests
- IEEE 802.1x and additional security functions for maximum security in business networks
- Ideal for environments with plenty of mobile data traffic and BYOD (bring your own device) workstations
- Optimum WiFi coverage anywhere thanks to adjustable RF output power and high receiving sensitivity
- Professional delos firmware with numerous options for administrators (viewing Syslog entries, configuring the legacy rate sets, VLAN, dynamic VLAN, etc.)
- 3-year manufacturer‘s warranty, including business hotline and immediate replacement
- Engineered in Germany
